Testermeter- MMCFF0I006 residual current detection module

Testermeter- MMCFF0I006 residual current detection module

2024-10-23 17:20:21

MMCFF0I006 residual current detection module

Main Feature :
Serial No. : Zoe478

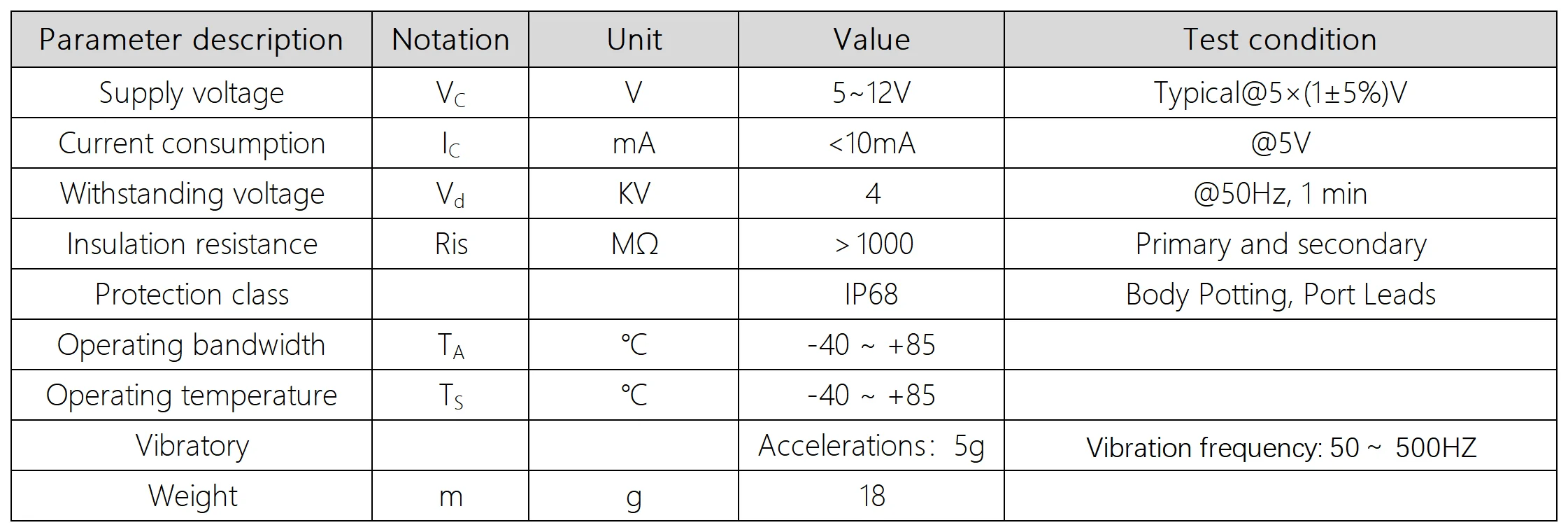

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter- MMCFF0I006 residual current detection module

This is a residual current detection module using the fluxgate principle. It meets the residual current detection standards of IEC62752 (Mode 2) and IEC62955 (Mode 3), and can detect 6mA DC residual current to respond to leakage events in a timely manner, which is widely used in the electric vehicle charger (charging pile) industry.
