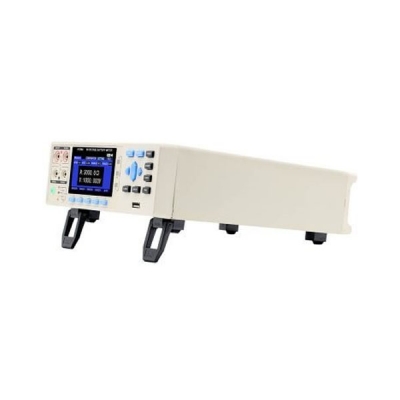

TesterMeter-HT3564 High Voltage Battery Tester 0-1000V

2023-07-20 11:45:31

Main Feature :
Serial No. : Lisa0236

Specification

Email:464560351@qq.com

Whatsapp&Wechat:+8618620373879

Overview

HT3564 series battery testers are designed for the new measurement requirements of the battery industry. They are special for measurement use in low-resistance batteries, large-scale lithium battery packs and fast product sorting in production lines.

The HT3564 series is capable of simultaneously checking internal resistance (IR) and battery voltage (OCV) at high speed. The product has high resolution, good stability, short test cycle, exquisite appearance, powerful function and various types of interfaces, which make it suitable for product development and automation production line.

With the technology advantage of Hopetech in battery internal resistance testing for many years, HT3563A/B series are able to offer a high resolution of 0.1uΩ and minimum resolution of 10uV.

Model HT3564 high voltage battery tester has maximum test voltage of 1000V.

Equipment with its standard features RS232C and hander interfaces, HT3563 series offer automatic measurement on batteries and a max measurement speed up to 50 times/sec.

Feature

The HT3563A/B series and 3564 have the same appearance and size, only their test voltage is different
Resistance minimum resolution 0.1uΩ, minimum voltage resolution 10uV
Minimum test cycle only 10mS
The maximum test voltage up to 1000V (HT3564 only)
Standard various interfaces for automatic test equipment
Strong anti-interference ability
AC four-terminal method, measure low-resistance in high-precision
Available automatic test function

10μV～1000V 3564 Battery Tester Operation Interface

10μV～300V 3563A Battery Tester Choosing Comparator Record

10μV～1000V 3564 Battery Tester Choosing Comparator Record

10μV～300V 3563A Battery Tester Beeper Configuration

10μV～1000V 3564 Battery Tester Beeper Configuration

Specification

Model		HT3564
Display		4.3 inch TFT-LCD display
Measurement parameters		ACR,DCV
Resistance	Accuracy	0.3%
	Range	0.1μΩ ～ 3kΩ
Voltage	Accuracy	0.01%
	Range	10μV～1000V
Signal Source		Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA
Range		7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;
		Auto and manual modes are available in each range
Measuring speed		100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec.
Calibration		Short-circuit reset for all ranges;
Comparator		30 sets of data records, 4 bins sorting, bin count
Others		data/report save, USB disk export,
Trigger mode		Internal/manual/external/bus trigger
Interface		RS-232/485, Handle (PLC interface), USB, Ethernet
Power supply		Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz;
Power(max)		15VA
Dimension(LWD)		325 mm215 mm96.5 mm
Weight		3 kg
Standard accessories		HT9363A test clip, HT9800 communication cable,PB36 connector, power cord

Charging Pile

New Energy Vehicle Charger

Soft Pack Battery

Storage Battery

Functions and Advantages

Fast sorting in automatic lithium battery production line

Thanks to HT3653B high precision and functional design, Hope Instrument battery tester is the tailor-made solution for your battery internal resistance and voltage test, small scale battery formation, capability grading, battery pack testing, etc.

With the rapid development of electronic products like cell phones, laptops, new energy electronic vehicles and other portable electronic devices, there is a higher need in batteries manufacturing. Meanwhile the requirement for batteries has become higher and more accurate. Hope instrument HT3563B reliable precision internal resistance battery tester is suitable to offer fast sorting in battery automatic production line and greatly help battery manufacturer to improve productivity under good product quality control.

High-voltage 10μV～1000V application in battery testing

The difficulty of high-voltage battery testing is that high voltage will impact the internal circuit through the isolation capacitor CS, and the reduced capacity value will reduce the impact of high voltage on internal circuits, but too high capacitive reactance will cause excessively high open circuit voltage, which cause hidden damagers to human body and battery itself. Hope Instrument solves this problem very well and HT3563 series has a max voltage of 60V~1000V for the battery packs.
