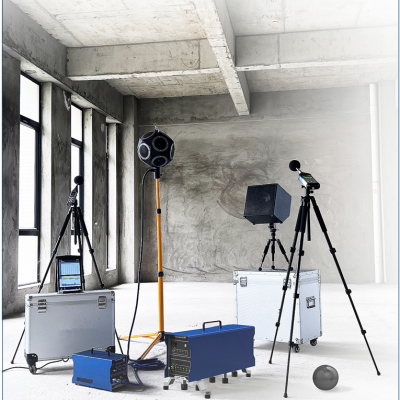

Testermeter-H239 Tapping machine
| H239 Tapping machine is an essential instrument used folmeasuring building sound insulation and conducting laboratorresearch.lt is mainly used to measure the sound insulationperformance of building floor impacts, providing a stable impactsound source by simulating the sound generated by peoplewalking on the floor or hitting objects. |
Applicable Standards
GBT 19889.7 Acoustics - Measurement of sound insulation in buildings and of building elements -Part 7: Field measurements of impact sound insulation of floors GBT 50121 Rating standard of sound insulation in buildings IS0 717-2 Acoustics - Rating of sound insulation in buildings and of building elements -Part 2: lmpact sound insulation IS0 140-6 Acoustics- Measurement of sound insulation in buildings and of building elements part 6: Laboratory measurements of impact sound insulation of floors IS0 140-7 Acoustics- Measurement of sound insulation in buildings and of building elements part 7: Field measurements of impact sound insulation of floors IS0 140-8 Acoustics- Measurement of sound insulation in buildings and of building elements -Part 8: Laboratory measurements of the reduction of transmitted impact noise by floor coverings on a heavyweight standard floor JJF1652-2017 Calibration Specification for Standard Tapping Machines |
Technical specifications
Impact signal stability Adopting a precise mechanical structure and closed-loop control system ensuring high stability of the impact signal. Hammer status indication Display the status of 5 impact hammers through LED indicator lights ensure that the impact hammer talls normally Mains or battery powered This product is equipped with an internal battery pack (Nickel hydrogenate),which can help operators work without any cables. The battery automatically charges when connected to the main power supply. A fully charged battery can ensure 4 hours of continuous operation. Wireless remote control Adopting a 433MHz remote control, it has strong wall penetrating ability and a free field remote control distance of over 100 meters. Temperature control function Tapping machine is equipped with a motor overheat protection function to prevent damage to the motor caused by high temperature. Manual operation supported The Tapping machine can not only be remotely controlled through a remote control, but also supports manual control operation through the operation buttons on the front panel of the instrument |
Main indicators | |||
Hammers | 5 hardened stainless steel impact | Data interface | Lemo(supports communication |
Hammer head diameter | Power supply | 185-265VAC 50/60Hz AC power | |
Interaxcle spacing | |||
Battery capacity | 4000mAh,Rechargeable nickel | ||
Impact surface curvature | |||
Operating time | ≥4 Hours | ||
Weight 500g±4g | |||
Charge time | ≤2 Hours | ||
Frequency | Center distance between adjacent | ||
Overall Power | 16W | ||
Sequence | 1#,3#,5#,2#,4#(Near the | Overheat protection | Motor over hea ting protec tion |
Hammer state | Built in drop hammer status and | Operation | -10°to+50°C |
Hammer drop | 45 mm(±5 mm adjustable) | Operation | ≤90%RH(non-condensed) |
kickstand | 3 folding support legs with rubber | Size | 510*155*292mm |
Remote control | 433MHz,Remote control distance> | Weight | 10.6kg |
