TesterMeter-F3814-WF Industrial WIFI Router

  • Main Feature :
  • Serial No. : Xtester2501739
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

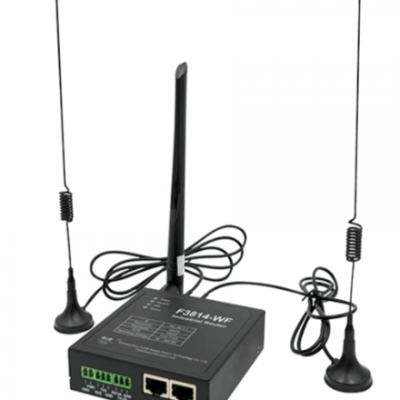

Xtester-F3814-WF Industrial WIFI Router

OVERVIEW

F3X14-WF(F3814-F) series router is an IoT wireless communication router, which utilizes public 2G/3G/4G cellular network and WiFi to provide users with wireless data transmission function.The industrialized design meets the needs of most smart grids, provides reliable data transmission for the field of industrial automation, and creates a new field of power automation.

MAIN FEATURES

1,WiFi connection: Support AP, Client, Repeater, Repeater Bridge four modes;

Support 802.11b, 802.11g, 802.11n wireless devices connection;

Wireless security used to configure the security of your wireless network. This route is a total of seven kinds of wireless security mode.

2,Industrial design application

Metal shell, protection level IP30, and system safety isolation;

Wide power input (DC 9~36V) and wide temperature(-40~+75ºC) design;

Supports wall-mounted and rail-mounted installations, meets the use of most industrial environments.

3,Powerful functions

Protocol: Support TCP/IP, UDP, FTP (optional), HTTP and other network protocols;

Network: Support 2G/3G/4G cellular network, DHCP, static IP,WiFi, and other Internet access methods, providing reliable network transmission;

Interface: including RS232/485, RJ45 port, which can be used to connect various devices.

4,Diverse device management

Support devise web local/remote login management, meet the HTTP(s) standard protocol requirements;

Support remote telnet, SNMP, SSH, Syslog, and other equipment management methods to facilitate on-site equipment maintenance;

Support remote upgrades/configuration, and other functions to provide a reliable guarantee for the safe operation of equipment.

5,Data Security

Support multiple VPN tunnel connections, IPsec, OpenVPN, GRE, L2TP/PPTP;

Support firewall functions, and effectively isolates attack data;

Supports device authority management to ensure safe access for customers.

Technical Parameter

Cellular Specification
ItemsContents
ModuleIndustrial grade wireless module
FrequencyLTE-TDD B38/B40/B41
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28
WCDMA/HSPA+ B1//B3/B5/B8
GSM/GPRS/EDGE 850/900/1800MHz
BandwidthFDD: downlink rate 100Mbps, uplink rate 40Mbps
DC-HSPA+: Downlink rate 42Mpbs, uplink rate 5.76Mbps
HSPA+: Downlink rate 21Mpbs, uplink rate 5.76 Mbps
HSDPA: Downlink rate 7.2Mbps, HSUPA: Uplink rate 5.76Mbps
UMTS:384Kbps
Power< 23dBm
Sensitivity<-97dBm
GPS Parameters (optional)
ItemsContents
Receiver type32 channel
GPS
L1,1575.42MHz;
Data update rate1Hz
AccuracyGPS<2.5m CPE50% (open field)
GPS ONLY 3m CPE50% (open field)
CaptureCold start: 32S
Warm start: 1S
Restart: 1S
SensitiveTracking: -160dBm
Cold start: -148dBm
Timing accuracy20ns
Interfaces
ItemsContents

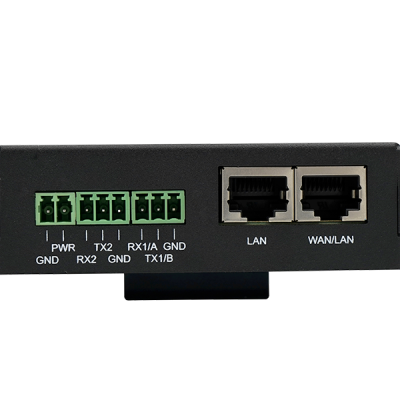

EthernetEthernet 10/100M, in line with Fast Ethernet specification;
Lan port and wan port can be used interchangeably;
Serial1 Channel RS232 serial port , 1 channel RS485 (optional with RS232) serial port. Parameters are as follows:
Data bits: 5, 6, 7, 8 bits
Stop bits: 1, 1.5 (optional), 2 bits
Parity: no parity, even parity, odd parity
Serial port rate: 4800~115200bits/s

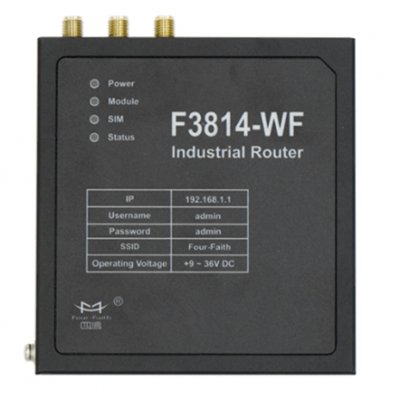

Indicators1 Power light (red), 1 network light (green), 1 SIM card light (green), 1 online light (green)

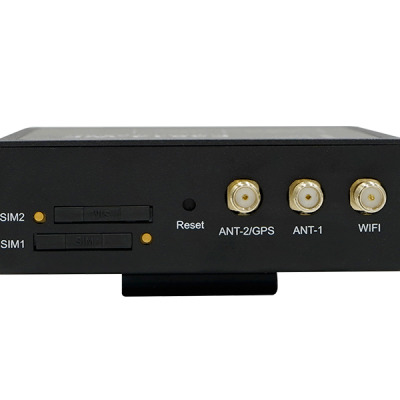

SIM/UIM2*Standard drawer type, 1.8V/3V SIM/UIM,15KV ESD protection
PowerDC9~36V
Reset ButtonThrough this button, the parameter configuration can be restored to the factory
Physical PropertiesHardware System
ItemsContentsItemsContents
ShellMetal shell, IP30CPUIndustrial-grade 32-bit communication processor
Size94x89x28 mm (Does not include antenna and mounting parts)FLASH16MB (expandable to 64MB)
WeightAbout 330gDDR364MB
Power ConsumptionOthers
ItemsContentsItemsContents
Standby95~220mA@12VDCOperating Temperature-35~+75ºC(-31~+167℉)
Communication150~300mA@12VDCStorage Temperature-40~+85ºC(-40~+185℉)


Relative Humidity95% (No condensation)
