EM3690 Handheld Contract Loop Resistance Tester

  • Main Feature :
  • Serial No. : Zoe778
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

EM3690 Handheld Contract Loop Resistance Tester



Product Introduction

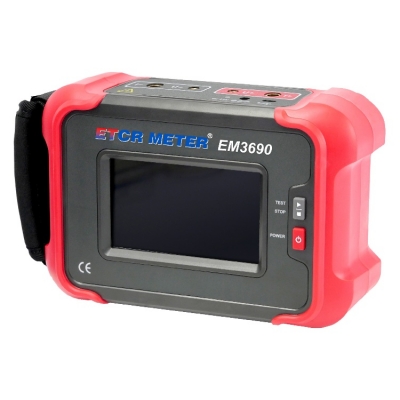

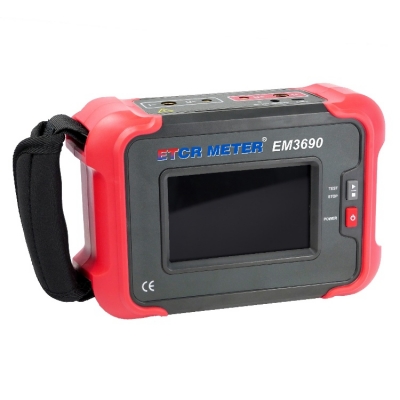

ETCR EM3690 Series Handheld Type Contract Loop Resistance Tester also known as contact resistance tester. The tester adopts microprocessor technology, tesing with precision 4-wire method, which is accurate and reliable. The tester mainly used for measuring small resistance of the high voltage switches, circuit breakers, relay metal contacts, etc. The tester is small in size and light in weight, equipped with large-capacity lithium battery pack, which can perform 500 times measurements on a single full charge. Widely used in building quality inspection stations, supervision companies, construction units, lightning protection companies, power departments, marine locomotive factories, etc.

1. 5-inch touch colorful screen, large-capacity power lithium battery, handheld type structure, easy to carry and simple to operate.

2. Max. test current up to 100A, comply with the power standard of the "DL/T845.4-2004".

3. Anti-power frequency interference, meet the application request of 1000KV substation.

4. The housing insulation, sealing, anti-leakage, anti-wind & sand, shock protection and other functions.

5. Max. store 1000 groups data and will not lose data when power is off.

6. The instrument has Bluetooth communication, USB interface, automatic shutdown and other functions.

7. The instrument has overheat protection function, which will stop testing when the internal temperature is too high.

*The C model equipped with a thermal printer, which can print test results on site.



Technical Parameters

Product Model

EM3690

EM3690C

Test Current(DC)

50A, 100A(2 gear

10A,20A,30A,40A,50A,60A,70A,80A,90A,100A(10 gears)

Test Time

Fast, 10s, 20s, 30s, 40s, 50s, 60s

Fast, 1~60s (customize)

Weight

Approx. 5.74kg(include accessories)

Approx. 6.07kg(include accessories)

Measurement Range

0.0uΩ~10.000mΩ

0.0uΩ~80.000mΩ

Test Method

Precision 4-wire method, 2 channels A/D simultaneous detection

Power Supply

DC 7.4 V 17600mAh rechargeable lithium battery

Max Resolution

0.1uΩ

Output Voltage

Approx. 3.7V

Test Current Accuracy

±5%

Measurement Time

>500 times (100A fast mode)

Overflow Display

Over-range overflow function: The meter displays over-range, please check the wiring

Battery Power Indicator

Real-time display of current battery power

Data Storage

1000 groups (data will not be lost after power failure or battery replacement)

Data Hold

After test, the test results will be automatically displayed.

Automatic Shutdown

After setting automatic shutdown, the tester will automatic shutdown after 15 minutes without any operation

Test Wire

Red*1PCS; Black*1PCS

Display mode

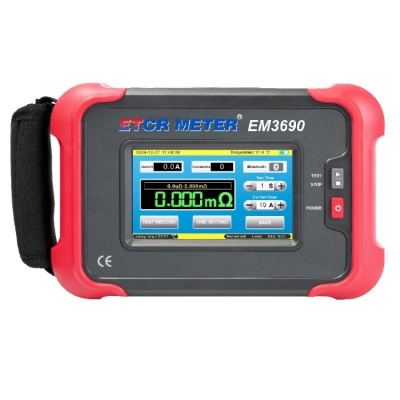

5-inch true color LCD touch screen

Host Dimension

263mmX152mmX74mm

Working Temperature &Humidity

-10℃~40℃; below 80%RH

Storage Temperature &Humidity

-10℃~60℃; below 70%RH

Bluetooth Communication

Yes, can communicate with mobile terminals

External Printer

Bluetooth thermal printer, powered by lithium battery 7.4V 1200mAh (only Type C)

USB Interface

With USB interface, software monitoring, storage data can be uploaded to computer, save and print.

Withstand Voltage

AC 3700V/rms(between the housing and screws)

Safety Regulations

IEC61010-1, CAT Ⅲ 600V, Pollution Degree 2, JJG724-1991 "Verification Regulation for DC Digital Ohmmeters", JJG166-1993 "Verification Regulation for DC Resistors", DL/T967-2005 "Verification Regulation for Loop Resistance Testers and Rapid DC Resistance Testers", JJG 1052-2009 "Verification Regulation for Loop Resistance Testers and DC Resistance Meters", DL/T845.4-2004 "General Technical Specifications for Resistance Measurement Devices Part 4: Loop Resistance Testers"

Accessories

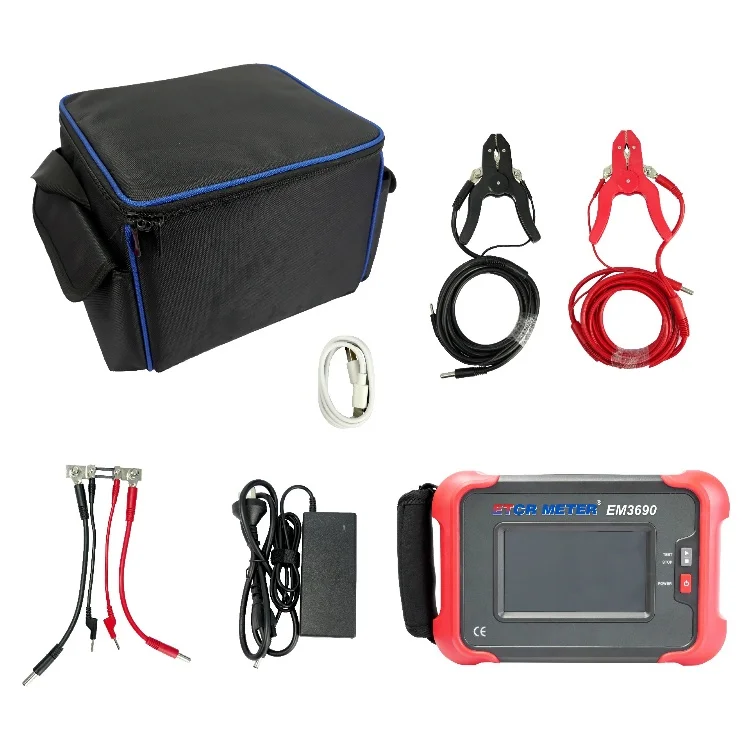

Tester: 1PCS; Test lines: red*1PCS; black*1PCS; USB communication cable: 1PCS; 0.5mΩ standard resistor: 1PCS; Power adapter: 1PCS; Tool bag : 1PCS; Printer: 1PCS (Type C only); Printer charger: 1 PCS(Type C only)
