Testermeter-CO2 Sensor in Temperature and Humidity Option G01-CO2-B10C/30C Series

  • Main Feature :
  • Serial No. : Lisa0635
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

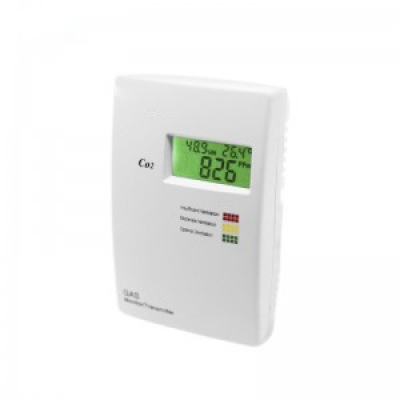

Testermeter-CO2 Sensor in Temperature and Humidity Option G01-CO2-B10C/30C Series

overview

Real-time monitoring ambiance carbon dioxide and temperature & relative humidity, also combined both humidity and temperature sensors seamlessly with the digital auto compensation. Tri-color traffic display for three CO2 ranges with adjustable. This feature is very suitable for installation and use in public places such as school and office. It provides one, two or three 0-10V / 4-20mA linear outputs and a Modbus RS485 interface according for different applications, which was easily integrated into building ventilation and commercial HVAC system.

FEATURES


Design for real time measuring ambiance carbon dioxide level and temperature +RH%

NDIR infrared CO2 sensor inside with special

Self Calibration. It makes CO2 measurement more accurate and more reliable.

More than 10 years lifetime of CO2 sensor

High accuracy temperature and humidity measurement

Combined both humidity and temperature sensors seamlessly with the digital auto compensation

Provide up to three analog linear outputs for measurements

LCD is optional to display CO2 and temperature &RH measurements

Optional Modbus communication

The end user can adjust CO2/Temp. range which correspond with the analog outputs Via Modbus, also can preset the direct proportion or inverse proportion for different applications

24VAC/VDC power supply

EU standard and CE-approval



TECHNICAL SPECIFICATIONS

Power supply
100~240VAC or 10~24VACIVDC
Consumption
1.8 W max. ; 1.2 W avg.
Analog outputs
1~3 X analog outputs
0~10VDC(default) or 4~20mA (selectable by jumpers)
0~5VDC (selected at placing the order)
Rs485 communication (optional)
RS-485 with Modbus RTU protocol, 19200bps rate, 15KVantistatic protection, independent base address.
Operation conditions
0~50℃(32~122℉); 0~95%RH, non condensing
Storage conditions
10~50℃(50~122℉), 20~60%RH non condensing
Net Weight
240g
Dimensions
130mm(H)×85mm(W)×36.5mm(D)
Installation
wall mounting with 65mm×65mm or 2”×4”wire box
Housing and IP class
PC/ABS fireproof plastic material, protection class: IP30
Standard
CE-Approval
CO2 measuring range
0~2000ppm/ 0~5,000ppm optional
