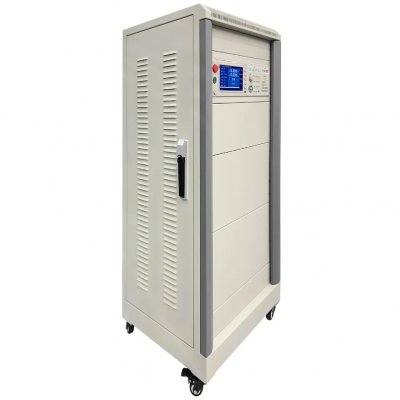

TesterMeter-RK9970/RK9970A-3/RK9970A-6 Programmable Auto Safety Tester
Description
RK9970 series is a multifunctional safety regulation comprehensive tester, which can solve all safety concerns in one station and multiple tasks. It is a priority solution for system integration and experimental research and development. One machine meets all safety regulations. RK9970/RK9970A-3/RK9970A-6 program-controlled safety regulation comprehensive tester AC withstand voltage test voltage range: 0.050kV~5.000kV AC withstand voltage test voltage accuracy: ± (1%+0.2% of full scale) Maximum output power of DC withstand voltage test: 120W (6.000kV/20mA) Insulation test output voltage setting: 0.050kV~5 000kV resolution: 1V volts/Step Current range of grounding resistance: (3.0-32.0) A Current accuracy: ± (1% reading value+0.2A) Power voltage range: 30.0V~300.0V Leakage current voltage range: 30.0V~300.0V Low-voltage starting voltage accuracy: ± (1% reading value+2V) Low voltage starting voltage range: 30.0V~300.0V |
Performance characteristics
DDS digital synthesis technology is adopted to produce accurate, stable, pure and low-distortion sine wave Adjustable voltage rise and fall time to meet the requirements of different test objects With dual-frequency integrated test, the frequency range is 50Hz, 60Hz Humanized operation interface, support for direct input of digital keys, pull out input, more convenient operation Bilingual operation interface in Chinese and English to meet the needs of different users Store 140 test files, with a maximum of 20 test steps per file Standard PLC interface, RS232C interface, RS485 interface, USB interface 7-inch TFT (800 * 480) is used to display the setting parameters and test parameters, and the display content is eye-catching and rich application area. |
