ETCR016 Clamp Current Sensor

  • Main Feature : 1：High accuracy AC leakage current、higher harmonic current、phase、power energy、power 、power factor measurement etc. 2：Range：0.00mA～20A AC 3：Turn Ratio：800：1 4：Resolution: 0.01mA 5：Accuracy Class: 1.0 6：Safety Class: CATⅢ600V 7：CT Structure: Clamp 8：CT Size：Φ16mm
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

INTRODUCTION

TesterMeter-ETCR016 High Accuracy Clamp leakage current sensor for AC leakage current, current, high harmonic current, phase, power, power factor and other detection. Range: 0.000mA～60.0A, jaw size is Φ16mm. The sensor adopts the clamp-shaped structure, which can be measured without disconnecting the measured circuit. The permalloy iron core and double-layer shielding technology are used to ensure the accuracy and stability of the measurement. Non-contact measurement methods are adopted, and the operation is safe and simple. It can be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, and high-precision digital multimeters.

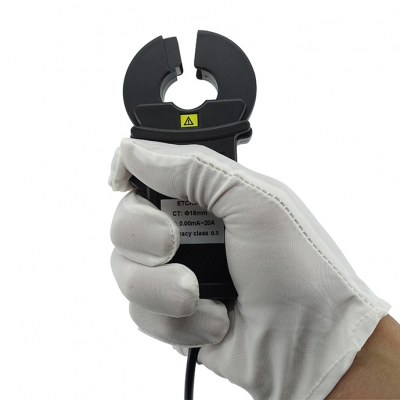

1. Coil tap   2. Shielding ground      3. Sensor output plug    4. Output wire (2.5mm)

5. Trigger 6. Clamp


Technical Specification

FunctionDescription
Function High accuracy AC leakage current、higher harmonic current、phase、power energy、power、power factor measurement etc.
Model TesterMeter-ETCR016
Range 0.00mA～20A
Resolution 0.01mA
Accuracy Class 1.0
Phase Error ≤2°
Turn Ratio 800:1
Reference Load
0 ~200mA ≤ 300Ω
0 ~2A ≤ 30Ω
0 ~ 20A ≤ 3Ω
Clamp Size φ16mm
Weight 138g
Output Interface
Shielded wire 1.5m, wire terminal interface: φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug(Can be customized)
Frequency 45Hz～100KHz
Insulating Strength
AC 3700V/rms ( between the core and coil)
Safety Class CATⅢ600V
Output Method Current sensing output
Working Temperature -15℃～50℃

SELECTION GUIDE

Model

Range

Resolution

Accuracy Class

Phase Error

Turn Ratio

Reference Load

Clamp Size

TesterMeter-ETCR016

0.00mA～20A AC

0.01mA

1.0

≤2°

800:1

≤120Ω

φ16mm

TesterMeter-ETCR030

0.00mA～30A AC

0.01mA

1.0

≤2°

800:1

≤100Ω

25mm×30mm

TesterMeter-ETCR040

0.00mA～40A AC

0.01mA

1.0

≤2°

800:1

≤80Ω

35mm×40mm

TesterMeter-ETCR068

0.00mA～60A AC

0.01mA

1.0

≤2°

800:1

≤50Ω

φ68mm

TesterMeter-ETCR080

0.00mA～60A AC

0.01mA

1.0

≤2°

800:1

≤50Ω

80mm×80mm



Lable: 0.00mA～20A AC,φ16mm Clamp-current-sensor clamp-current-transformer leakage-current-sensor
