1000PPM MiniMeta explosion-proof handheld CO gas leakage detector Safety industrial carbon monoxide monitor arm

  • Main Feature :
  • Serial No. : Zoe229
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-1000PPM MiniMeta explosion-proof handheld CO gas leakage detector Safety industrial carbon monoxide monitor arm

Overview

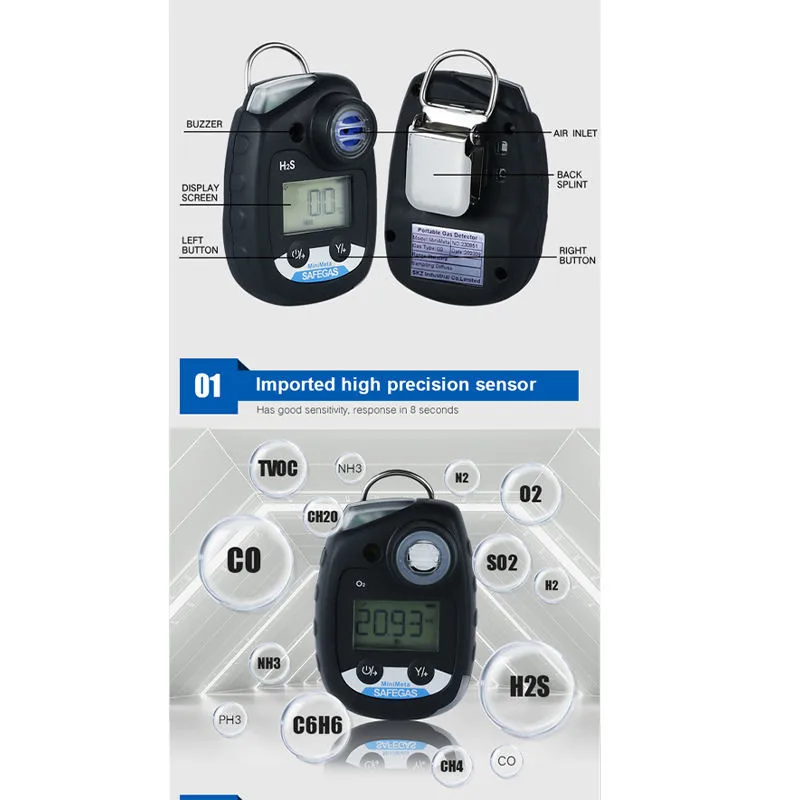

MiniMeta is a maintenance free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection - no calibration, no sensor replacement, no battery replacement or battery charging required.

Passed IECEx, ATEX, and CNEX explosion-proof certifications, meeting the highest standards of quality and reliability, ensuring your safety and compliance.

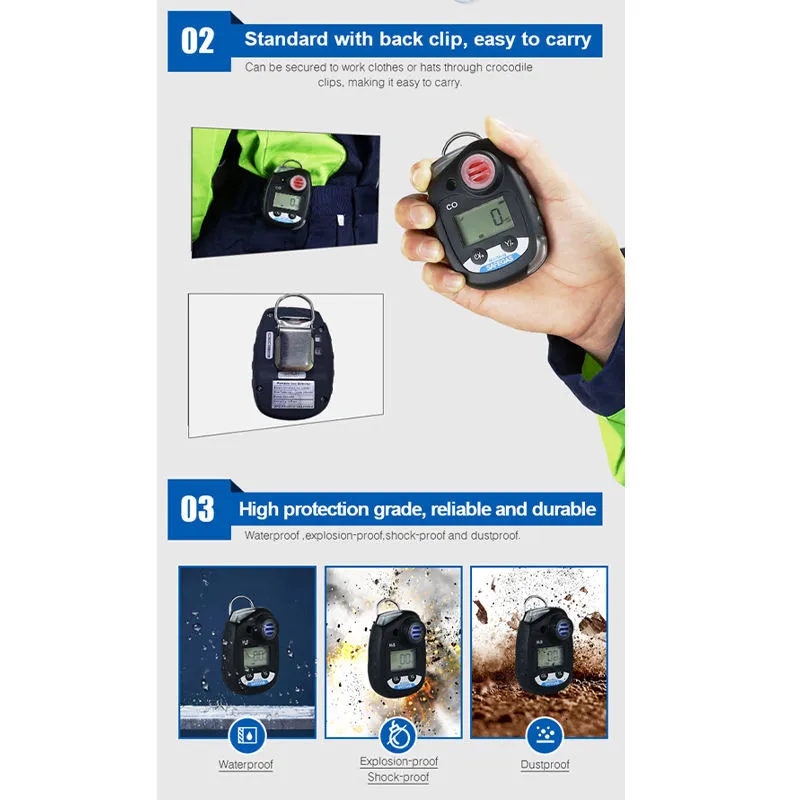

Compact, sturdy, ergonomic, and can be secured to work clothes or hats through crocodile clips, making it easy to carry.
It can detect conventional toxic and harmful gases such as carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide, and is widely used in industries such as petroleum and petrochemical, metallurgy, and chemical engineering for personnel protection and gas detection.


Feature

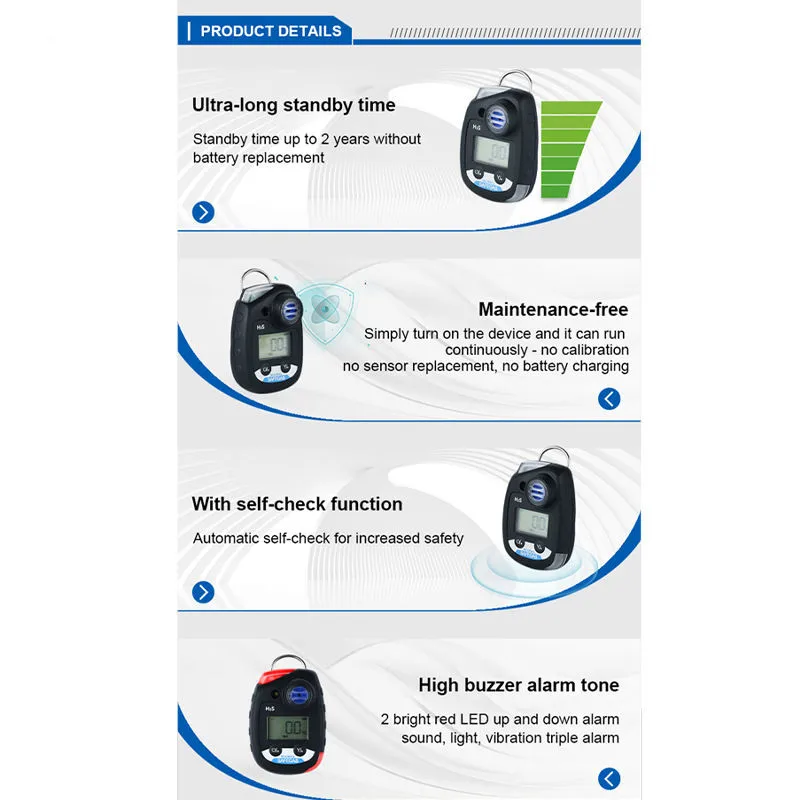

* Low power and long standby, with a standby time of up to 2 years, without the need to replace the battery.
* Maintenance free: Just turn on the device and it can run continuously - no calibration, no sensor replacement, no battery
charging required.
* Automatic Self check function to improve safety.
* Ultra high buzzer alarm sound, 2 bright red LED for LOW and HIGH alarms, and triple alarms for sound, light, and vibration.
* High alarm, low alarm, TWA, STEL multiple alarm types, allowing users to adjust alarm setpoints as needed throughout the entire lifecycle.
* Automatically record 10 recent alarm events for easy and accurate record keeping.
* Protection level IP66/IP68, waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design.
* Compact and lightweight design, two button operation, without the need for extensive training.
* Economical and low cost, Small size, light weight, and easy to carry.
* The shell is made of high-strength materials, designed specifically for various harsh environments, making it comfortable and durable.


Sampling method

Diffusion type

Gas type

CO

Measure range

0-500,1000,2000ppm

Resolution

1PPM

Sensor Principle

Electrochemical principle

Response time

≤30 seconds

Language

Chinese/English

Accuracy

≤±3%FS or ±10%

Measure unit

PPM, mg/m3, % VOL μ Mol/mol

Display

gas name, concentration unit, measured value, electrical quantity

Alarm

sound, light, vibration alarm, and high and low alarm values can be set

Battery

3.6V dry battery (non rechargeable)

Working hours

2 years

Explosion-proof grade

ExiaIICT4Ga

Protection grade

IP66/IP68

Standards

GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC
60079-11-2011

Working temperature

-20ºC~+55ºC

Humidity

0~95%RH(no condensation)

Environmental pressure

86~106Kpa

Size

90 * 60 * 33mm (length * width * thickness)

Weight

125g
