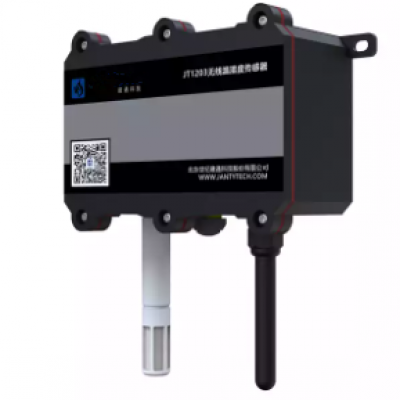

TesterMeter-JT1203-D wireless temperature and humidity sensor
TesterMeter-JT1203-D wireless temperature and humidity sensor
TesterMeter-JT1203-D wireless temperature and humidity sensor
TesterMeter-JT1203-D wireless temperature and humidity sensor

TesterMeter-JT1203-D wireless temperature and humidity sensor

2023-07-06 16:55:03

Model Number: Xtester-JT1203-D Product name: wireless temperature humidity sensor measuring range: Humidity 0-100%; temperature -20-70°C Test accuracy: Humidity 3%; temperature ±0.5°C Size: 140X85X56mm

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Introduction

Customized support: OEM

Model Number: TesterMeter-JT1203-D

Product name: wireless temperature humidity sensor

measuring range: Humidity 0-100%; temperature -20-70°C

Test accuracy: Humidity 3%; temperature ±0.5°C

Size: 140X85X56mm

output signal: LoRa

Supply voltage: DC5V

Battery life: >1 year

Protection level: IP65

Features

High sensitivity temperature and humidity chip is used as sensing device,

It adopts rod like packaging structure and has a high polymer filter assembly,

Integrated design,

The built-in circuit adopts high-precision ad chip module,Filter module, signal processing module, signal processing module

The sensor is output by Lora wireless transmission protocol, without secondary development,

Ultra low power design and advanced power management function

Wall mounting method,

The overall protection level is IP65,

It is applicable to any place where long-term online monitoring is required.

Product Description

Parameter nameTechnical indexDescription
SensorsDigital temperature sensor
measuring range

Humidity 0-100%; temperature -20-70°C


Test accuracy

Humidity 3%; temperature ±0.5°C


output signalLoRa
Supply voltage

DC5V


Endurance time>1 yearWork every 20 minutes
Use environment-20-70°C;0-100%RH
Basic dimensions140X85X56mmThe structure can be customized
Installation formWall hanging
Protection level

IP65


Accessories

Wall-mounted accessories

Standard
Power Adapter Standard
Charging and data communication cable
