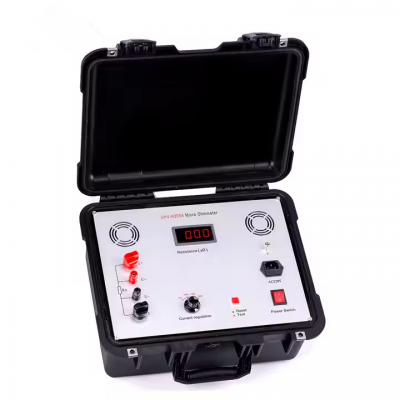

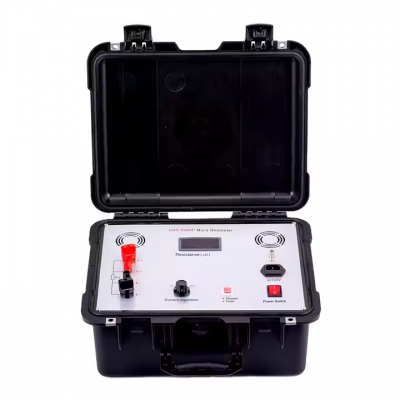

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

2025-06-20 16:21:05

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

Main Feature :
Serial No. : monica0612

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

testermeter-HVH200A 50A 100A 150A 200A CRM 50A 100A 150A 200A Switchgear Circuit Breaker Contact Resistance Tester Micro Ohmmeter CRM Contact Resistance Meter

Features

1. High current: using The new power supply technology, Contact resistance tester can continuously output high current for a long time, overcome The disadvantage of impulse The power supply instantaneous current, can effectively break through The switch Contact oxidation film, get good test results.

2. Strong anti-interference ability: under The condition of serious interference, The last digit data of LCD can be stable within ±1 word of The scope of, with stable reading and good repeatability.

3. Long service life: All use high-precision resistance, effectively eliminate the influence of ambient temperature on measurement results.

4. Easy to carry: small size and light weight.

Product Paramenters

Measuring range	1～1999μΩ
Resolution	1μΩ
Test current	DC50A、100A、150A、200AFour speed fixed output
Accuracy	0.5%±1d
Way to work	The connection
Display	Three and a half LCD
Power supply	AC220V±10% 50Hz
Working environment	Temperature -10℃ ~ 40℃, humidity: ≤80%RH
Diemension	370(L)×320(W)×260(H) mm3
Weight	9.6kg(excluding attachments)

Lable: testermeter-HVH200A Switchgear Contact Resistance Tester
