Testermeter-pv-cable-Suntree 1000v 1500v Pv Solar Cable Copper Xlpe Xlpo Insulation Dc Pv Solar Wire Cable 2.5mm 4mm 6mm 10mm 16mm2

Main Feature :
Serial No. : monica0934

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-pv-cable-Suntree 1000v 1500v Pv Solar Cable Copper Xlpe Xlpo Insulation Dc Pv Solar Wire Cable 2.5mm 4mm 6mm 10mm 16mm2

Product descriptions from the supplier

Product Description

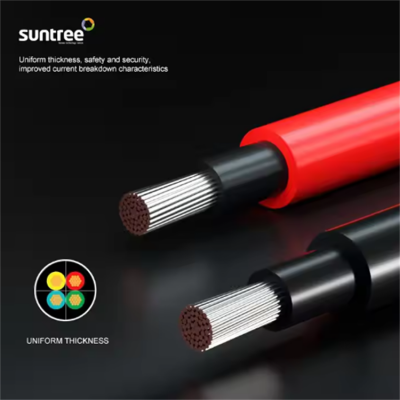

(1) Dual wall insulation,Electron beam cross-linked.

(2) Resistance to UV,water,ozone,fluids,salt,general weathering.

(3) Halogen free,flame,retardant,low toxicity.

(4) Flexibility and stripping performance.

(5) TUV approved.

(6) High current carrying capacity.

(7) Resistance to abrasion.

Product parameters

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5
keyword	DC Solar Cable	Solar Cable	solar pv cable	esolar power cable	solar panel cabl

Specification

Lable: Solar Wire Cable
