Testermeter-oscilloscope HDM3075 Series

Main Feature :
Serial No. : monica1036

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-oscilloscope HDM3075 Series

7 1/2-digit high-accuracy multimeter;
Dual-display measurement function to display voltage and frequency measurements at the same time;

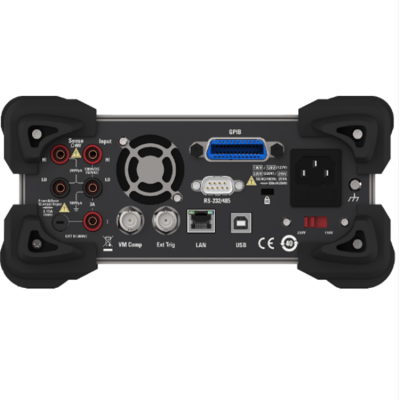

Front and rear 2 sets of multimeter test terminals,convenient for testing system cabling;
Up to 50,000 rdgs/s reading speeds;
Graphical display with built-in bar, trend charts, histogram, and statistics;
True RMS AC voltage and AC current measurement;
0.1pA current resolution and 10nV voltage resolution, simple operation, flexible parameter setting;
Current range can be 10A;
Multiple measurement functions:DC Voltage, AC Voltage, DC current, AC current, 2-wire resistance, 4-wire resistance, capacitance, diode, continuity, frequency, period, temperature;
4.3-inch 64K LCD;
Safety standards: CAT II 300 V;
Supports SCPI remote control commands, compatible with mainstream multimeter command sets in the market, and comes standard with PC control software;
Configration interface: USB Device, USB Host, LAN (HDM3075H, HDM3075B) , GPIB (HDM3075H) .

7 1/2-digit high-accuracy multimeter

4.3-inch 64K LCD;

Up to 50, 000 rdgs/s reading speeds;

0.1pA current resolution and 10nV voltage resolution.

Front and rear 2 sets of multimeter test terminals,convenient for testing system cabling;

Support standard SCPI remote control command, computer software.
