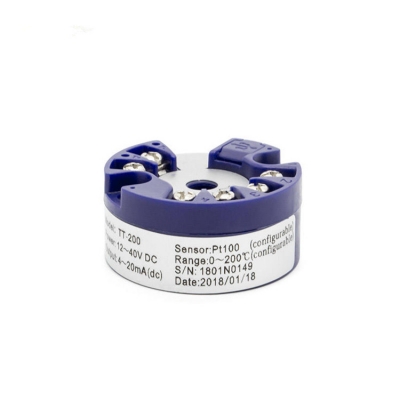

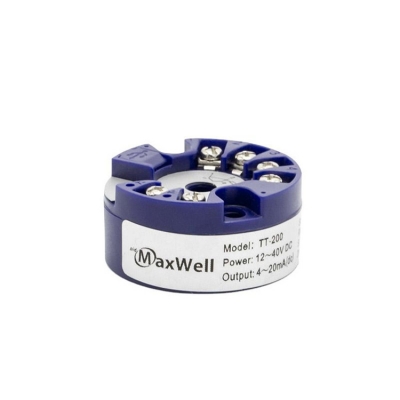

Testermeter-TT-200-Customizable Head Mounted Temperature Transmitter with OEM & ODM Support
Features
| Through the combination of "compact head - mounted installation, high - precision intelligent temperature measurement, and full - dimensional customization", the TT - 200 Maxwell not only solves the integration pain points of "difficult installation and limited space" in industrial sites, but also improves the digital level of temperature monitoring through intelligent functions. At the same time, relying on OEM/ODM services, it helps equipment manufacturers create differentiated products. It is a transmitter solution with "strong adaptability and high flexibility" in the field of industrial temperature monitoring. |
Specification
| Input | RTD/TC , Resistance ,Voltage |
| output | 4-20mA |
| max load | Max(V .Power supply-7.5V)/0.22A (Current output) |
| Measurement | temp-linearity ,resistance-linearity,voltage-linearity |
| Ciruit limit | ≤22mA |
| Response time | ≤1s |
| Alarm current | sensor damger or sensor turnoff output is 3.9mA or22mA |
| Accuracy | 0.1%FS |
| Power supply | 12-40VDC |
| Protection | IP00,IP66 |
