Testermeter-Sfere720C LCD Display Replacement UMG96 Multifunctional 3 Phase Power Meter

Main Feature :
Serial No. : monica0695

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

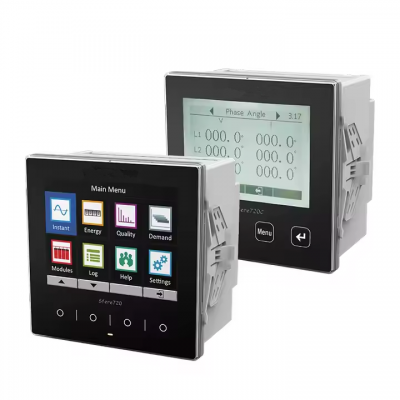

Testermeter-Sfere720C LCD Display Replacement UMG96 Multifunctional 3 Phase Power Meter

Product Introduction

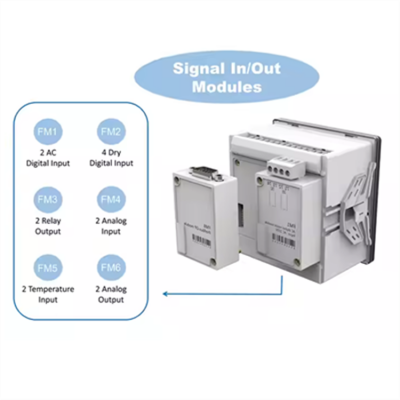

Sfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. SFERE720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.

Technical Parameter

Electric Characteristics
Accuracy	Voltage and current		0.20%
	Power,Power Factor		0.20%
	Frequency		±0.01Hz
	Active power		IEC62053-22, class 0.2S
	Reactive power		IEC62053-23, class 2
Data update rate			1s
Input	Wiring mode		1P2W,3P3W,3P4W
	Voltage	Rated value	400 VAC L-N (690 VAC L-L)
		Overload	1.2Vln
		Impedance	>1MΩ
	Current	Rated value	1A or 5A
		Overload	Continuous: 1.2In
			Instantaneous: 10In/5s
		burden	<0.1VA
		Rated value	<20mΩ
	Grid frequency		(45~65)Hz
Auxiliary supply	Working range		AC/DC(80~270)V
	consumption		≤ 10VA
Energy pulse output			1 photocouple outputs, pulse width (80±20%) ms
Digital input			AC220V input, isolation:2000VAC
Relay output			Contact rated at AC 250V/5A or DC 30V/5A
			Isolation:2500VAC
Communications
RS485 port			Modbus-RTU , 2-wire,up to 38400bps
Mechanical Characteristics
IP index	IP65(front panel)and IP20(meter body)
Dimensions	96×96×55mm
Environmental Characteristics
Operating temperature			(-10~60)℃
Storage temperature			(-25~70)℃
Relative humidity			(5~95)% (no gel)
Insulation			IEC 61010-1

Lable: Sfere720C Multifunctional 3 Phase Power Meter
