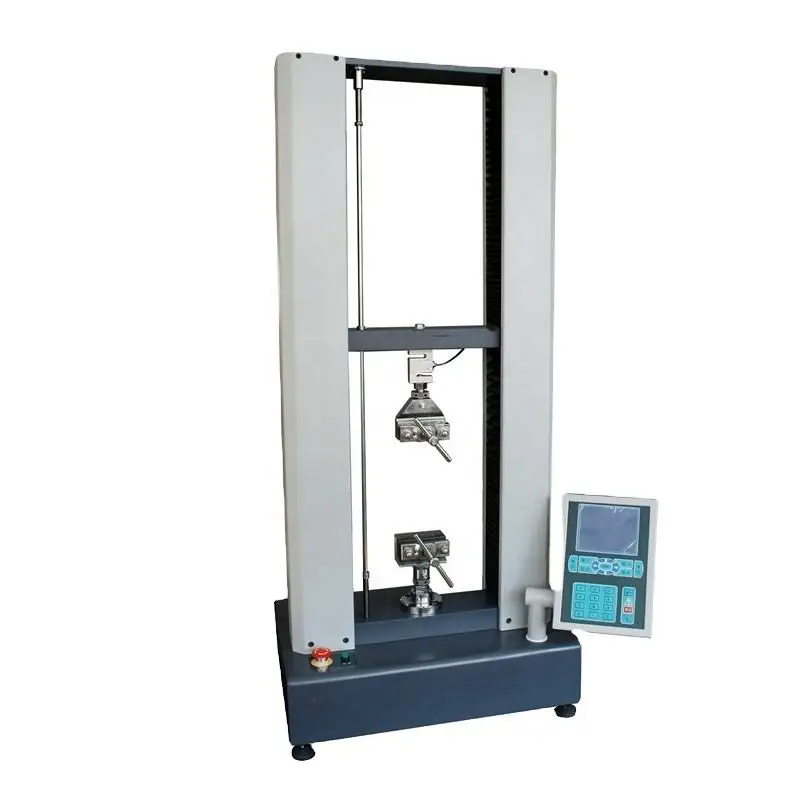

SKZ154A Lab auto testing equipment fabric CRE extension universal tensile testing machine

  • Main Feature :
  • Serial No. : Zoe203
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-  SKZ154A Lab auto testing equipment fabric CRE extension universal tensile testing machine

the tensile strength machine textile tester, tensile strength machine textile testing and tensile strength machine textile test device is high accuracy.
For various textiles with test items: Tensile(stretching), tearing, bursting, constant extension, constant load, elastic, seam slippage, peel.


Standards:

ISO13934, ISO13935,ISO13936,ISO13937,ISO4606,ISO9073,ASTM D5034,ASTM D5035,ASTM D2261,ASTM D4964,ASTM D5587,ASTM D3936,JIS L1093,BS DIN


Features:

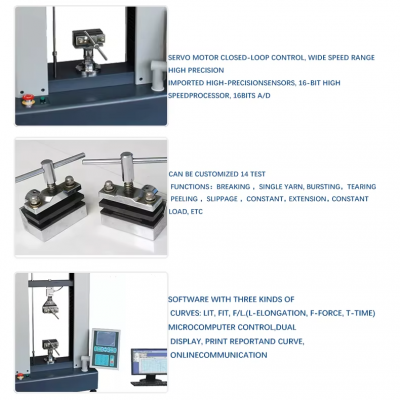

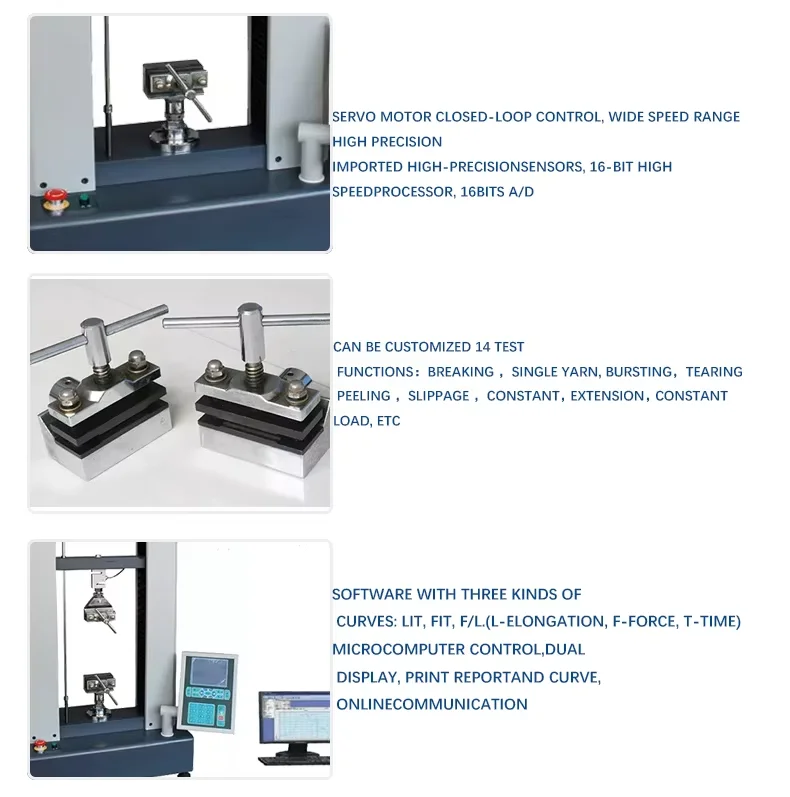

1.Servo motor closed-loop control, wide speed range, high precision
2.Equipped imported high-precision sensors, 16-bit high-speed processor, 16bits A/D
3.Can be customized 14 test functions: breaking, single yarn, bursting, tearing, peeling, slippage, constant extension, constant load, etc.
4. The test software adopts the current popular Microsoft platform, with strong compatibility, rich and clear operation interface.
And equipped with help files, which is convenient for beginners to understand the test standards and operation guidelines (test system V1.0 online operation (Ranzhudengzi No. 0234558).
5.The test software can be switched dynamically between Chinese and English, in the early, middle and late stages of the test.
6. Test units can be converted arbitrarily, such as N, CN, Kgf, Ib, In
7. The test results are exported in various formats such as EXCEL, web pages, graphics, etc., in order to connect with the client's enterprise management software.
8. Software with three kinds of curves: L/T, F/T, F/L. (L-elongation, F-force, T-time).
9. The software offers a variety of statistical models: full curve, single curve, histogram, and can be freely edited and printed, support fixed point query function.


Specification

Items

Specification

Working mode

microcomputer control, dual display, print report and curve, online communication

Integrated sampling rate

1000 times/second

Measuring range

500N,1000N,2500N

Force range

1% ~ 100%

Measuring accuracy

≤ ± 0.2% F.S

Tensile speed

5 ~ 500mm/min (stepless speed regulation)

Effective stroke

800mm

Elongation resolution

0.01mm

Gantry Width

400mm

Power

Ac220V ± 10% 50Hz

Dimensions

855 × 455 × 1750mm (L × W × H)

Weight

120kg
