SKZ1050E-CO2 Combustible Gas Analyzer carbon dioxide Location Concentration Meter Smart Sensor Gas Leak Detector

  • Main Feature :
  • Serial No. : Zoe161
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-SKZ1050E-CO2 Combustible Gas Analyzer carbon dioxide Location Concentration Meter Smart Sensor Gas Leak Detector

Specification

Gas Detected

CO2

Detection principle

Infrared principles

Measure Range

0-200050001000050000ppm10% 20%100Vol

Resolution

1ppm0.01%vol

Sensor life

2-3years

Precision

2%FS

Sampling method

Built-in stable flow pump, flow range: 0-500 ML/Min

Modular structure

Can detect up to 1-4 kinds of gases

Concentration unit

ppm, mg/m3, %VOL, %LEL, can be switched by one button

Display

3.5-inch color display, resolution 320*480

Display mode

Multiple display modes select-able:multi-channel data mode,
multi-curve mode,single channel + single curve mode

Data storage

Standard 16M capacity storage function, can save upto 100000 groups of data.
Can be directly connected to the computer through USB, quickly download stored data , EXCEL format

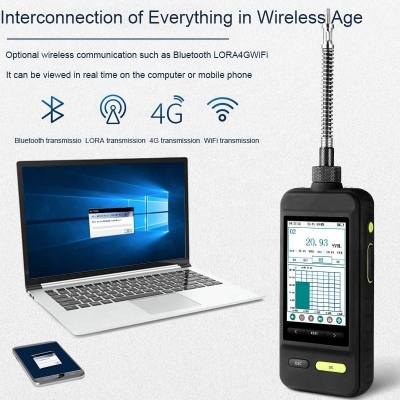

Wireless transmission

(optional) Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional)

Print

Built-in printer or external Bluetooth printer (optional with
extra charge)

Operating language

Chinese and English

Battery capacity

3800mA rechargeable

Charging interface

USB charging interface, 5V/2A standard charger

Filter device

Equipped with a multi-layer filter to efficiently filter oil, water
and dust.

Wireless network

Bluetooth (with print function), ZigBee, Lora+ (relay DTU),
DTU (optional with extra charge)

Network frequency

Lora (470M), DTU (2.4G) (optional with extra charge)

Wireless trans. distance

Lora (1.6 km), DTU (unlimited) (optional with extra charge)

Response Time

≤ 8S

Repeatability

≤ ± 1%

Zero shift

≤ ± 1% (F.S / Year)

Operating temperature

-20°C-50°C
(optional flue gas sampling probe, up to 600°C , 1200°C
smoke concentration)

Working humidity

0-95% RH (no condensation) (high humidity can be
selected with filter drying device)

Explosion-Proof

Exic II CT3, GC

Alarm mode

Buzzer, LED and alarm status prompt on the display, fault
alarm, pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional with extra charge)

Dimensions

270*75*41mm

Recovery Time

≤ 10S

Linearity error

≤ ± 1%

Degree of protection

IP66

Weight

400g

Standard accessories

Manual, warranty card, power charger, carrying case,
water and oil filter, data cable

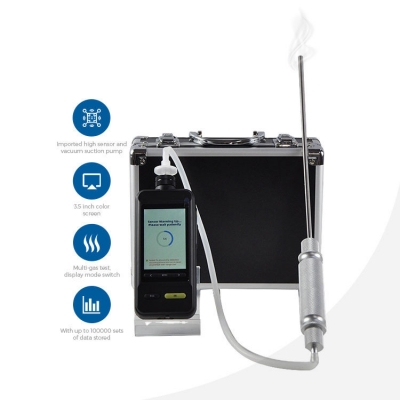

Optional accessories

Bluetooth printer, pressure sensor, high temperature rod,
Metal extension rod, Bendable rod , Silicone hose, dry filter device, PC download software
