Testermeter-SF-122B Cold Storage Cabinet Temperature Controller Digital Thermostat for Refrigerator

Main Feature :
Serial No. : Lisa0879

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-SF-122B Cold Storage Cabinet Temperature Controller Digital Thermostat for Refrigerator

Product description

Mini-sized and integrated intelligent control and

applicable to the compressor of one HP.

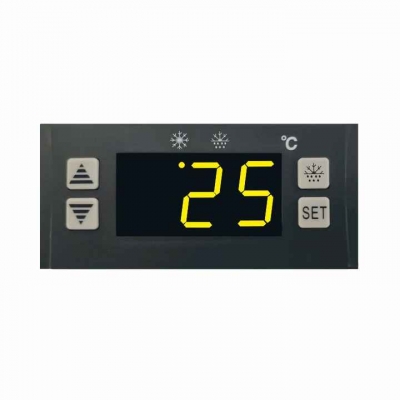

Temperature Display/Temperature Control/

Evap.Fan Control/Value Storing/ SelfTesting

Technical Data

Range of temperature displayed:—45~99°C

Accuracy:± 1°C

Rangeofset temperature: —45~99°C

Temperature sensor:NTC, 3.5m(L)

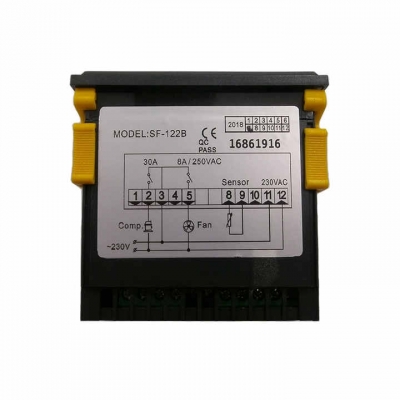

Compressor : N.O. 30A/250VAC • Evap.Fan : N.O. 8A/250VAC

Dimension:77(Length) X 35 (Width) X 70(Depth)mm

Mounting hole dimension:71(Length)X 29(Width)m

Lable: SF-122B Cabinet Temperature Controller
