Testermeter-RS-WS--2D--EX Easy Installed RS485 4-20mA 0-5V 0-10V Remote Monitor Wall Mount Rs485 Humidity and Temperature Transmitter Sensor

Main Feature :
Serial No. : Lisa0942

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-RS-WS--2D--EX Easy Installed RS485 4-20mA 0-5V 0-10V Remote Monitor Wall Mount Rs485 Humidity and Temperature Transmitter Sensor

Product description

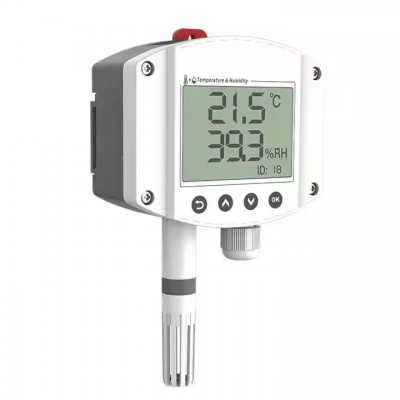

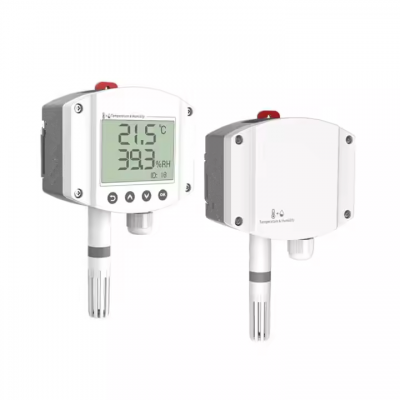

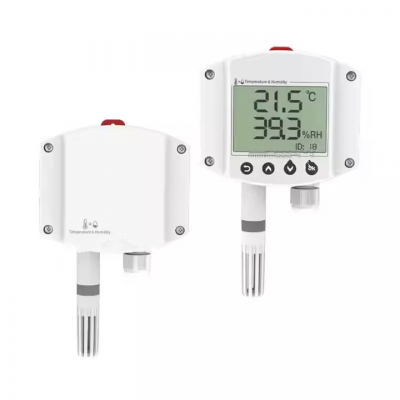

Renke RS-WS-*-2D-*-EX The wall-mounted temperature and humidity sensor is an industrial high-protection housing. The circuit adopts industrial-grade microprocessor chips imported from the United States, with high precision and responsiveness. Support customization and secondary development.

Power supply	DC 10-30V
Max. power consumption	0.4W(RS485), 1.2W(4-20mA/0-5V/0-10V)
Measuring range	-40℃~+80℃, 0%RH-100%RH
Accuracy	0.5℃ (25℃), ±3%RH(60%RH,25℃)
Resolution	0.1℃, 0.1%RH
Refresh time	1s
Hole size	70mm
Output signal	RS485/4-20mA/0-5V/0-10V
Long-term stability	Temperature	≤0.1℃/y
	Humidity	≤1%RH/y
Response time	Temperature	≤25s (1m/s wind speed²)
	Humidity	≤8s (1m/s wind speed²)

Lable: RS-WS--2D--EX Temperature Transmitter Sensor
