Testermeter-RS485 HIGH STABILITY 4-20MA 0-5V 0-10V OUTPUT PHOTOELECTRIC RADIATION SENSOR

Main Feature :
Serial No. : Lisa0862

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

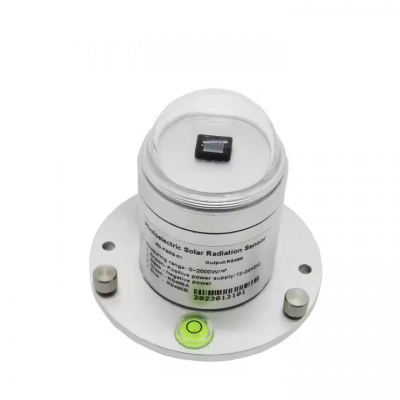

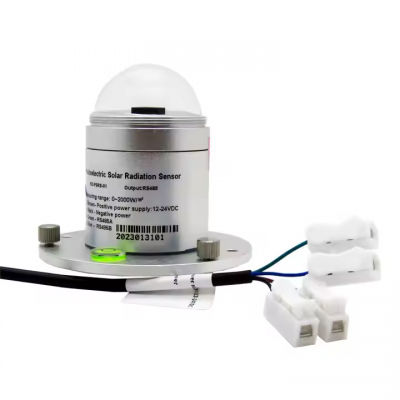

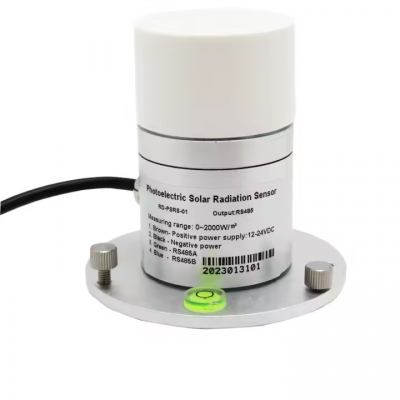

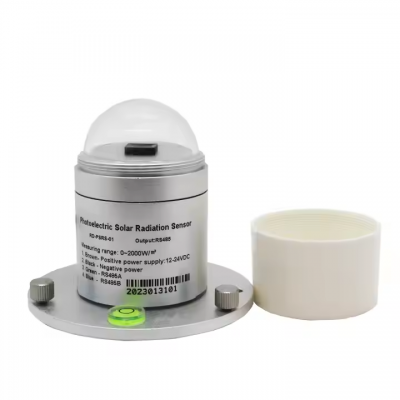

Testermeter-RS485 HIGH STABILITY 4-20MA 0-5V 0-10V OUTPUT PHOTOELECTRIC RADIATION SENSOR

Product descirption

Parameter name	Photoelectric radiation sensor
Power supply range	7V ~ 30V DC
Output mode	RS485modbus protocol/4-20mA/0-5V/0-10V
Power consumption	0.06 W
Working humidity	0% ~ 100% RH
Operating temperature	-25 ℃ ~ 60 ℃
Measuring object	Sunlight
Measuring range	0 ~ 1800W/㎡
Resolution	1W/㎡
Response time	≤ 10S
Nonlinearity	< ± 2%
Annual stability	≤ ± 2%
Cosine response	≤ ± 10%
Protection level	IP65
Weight	Approximately 300g
Data Communication system
Wireless module	GPRS, 4G, LORA , LORAWAN
Server and software	Support and can see the real time data in PC directly

Lable: RS485 PHOTOELECTRIC RADIATION SENSOR
