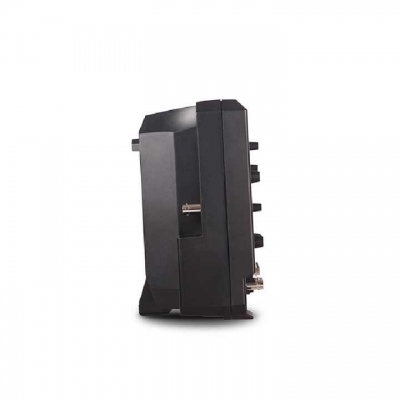

Testermeter- RIGOL MSO5074 Four Channel digital usb 70 MHz oscilloscope
Specifications
Model | MSO5072 | MSO5074 | MSO5102 | MSO5104 | MSO5204 | MSO5354 |
Analog Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 350 MHz |
Rising Time (typical) | ≤5 ns | ≤5 ns | ≤3.5 ns | ≤3.5 ns | ≤1.75 ns | ≤1 ns |
No. of Input/Output Channels | 2 | 4 | 2 | 4 | 4 | 4 |
16 input digital channels (PLA2216 probe option is required to be ordered) | ||||||
Dual-channel arbitrary waveform generator output (required to install the MSO5000-AWG option to activate the software function) | ||||||
Sampling Mode | Real-time sampling | |||||
Max. Sample Rate of Analog Channel | MSO5354/MSO5204/MSO5104/MSO5074: 8 GSa/s (single-channel), 4 GSa/s (half-channel), 2 GSa/s (all channels) MSO5102/MSO5072: 8 GSa/s (single-channel), 2 GSa/s (all channels) | |||||
Max. Memory Depth | Analog channel: 200 Mpts (single-channel), 100 Mpts (half-channel, 50 Mpts (all channels) | |||||
Digital channel: 25 Mpts (all channels) | ||||||
Max. Waveform Capture Rate | ≥500,000 wfms/s | |||||
Hardware Real-time Waveform Recording and Playing | ≥450,000 wfms (single-channel) | |||||
Peak Detection | Under all the time base settings, capture 500 ps glitches | |||||
LCD Size and Type | 9-inch capacitive multi-touch screen/gesture enabled operation | |||||
Display Resolution | 1024×600 | |||||
