PZEM-018 5A Single Phase 6in1 Volt Amp Watt Energy Wattmeter Ammeter Digital Panel Ampere Meter

  • Main Feature :
  • Serial No. : Zoe281
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter- PZEM-018 5A Single Phase 6in1 Volt Amp Watt Energy Wattmeter Ammeter Digital Panel Ampere Meter

Product Type
PZEM-018
Current Range
0-5A
Voltage Range
AC 80-260V



Function
1.Measure voltage, current, active power, energy, frequency, power factor
2. Overload alarm
3. Power alarm threshold preset
4. Reset energy
5. Store data when power off.
6. Large-screen LCD
7. Backlight function.
Weight
89g

Backlight control

Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.


Reset energy

Step1: Long press the key for 5 seconds until the energy value flash, then release the key.
Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.
Step3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.

Application Scenarios

1. Home
Monitoring the power consumption of home device such as air conditioner, refrigerator, TV and so on, to help you save energy.
2. MNS
Industry MNS
3. Inverter
Switching power supply, heating small, can be used in inverter, SCR etc which have much interference circuit
4. Maintain
Engineering maintenance
5. Assembly Line
6. Photovoltaic System

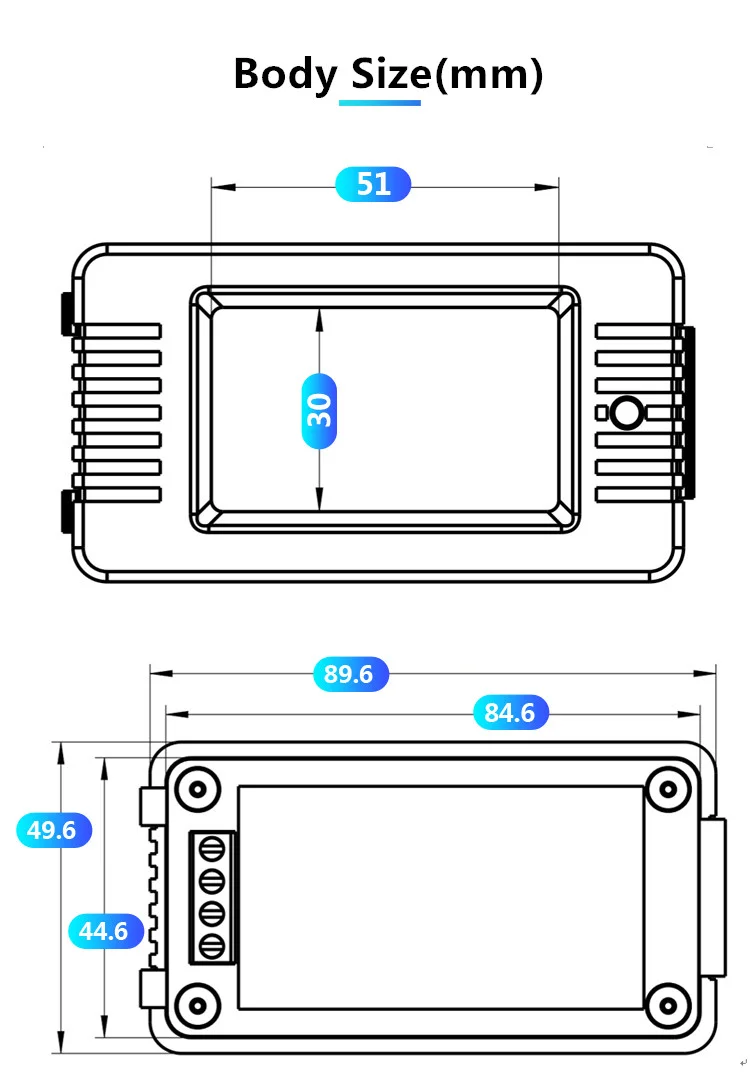

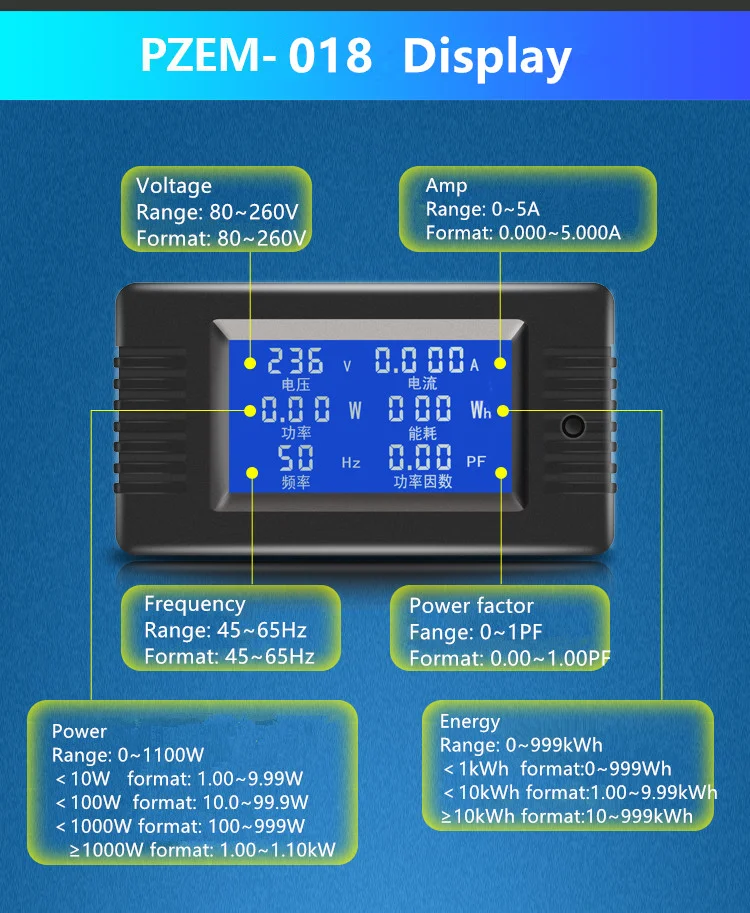

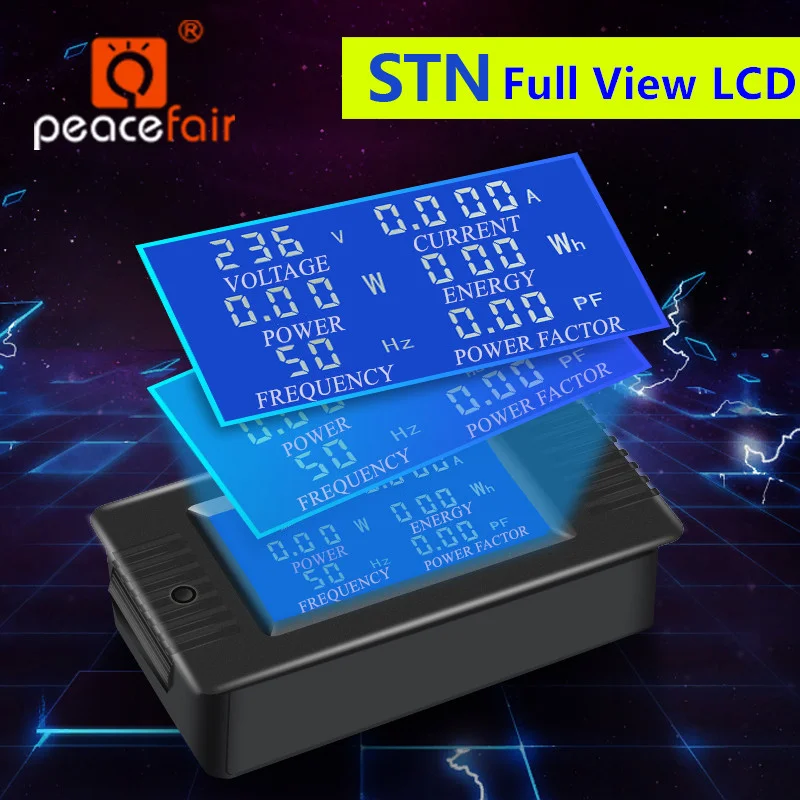

  1.png 2.png 3.png
