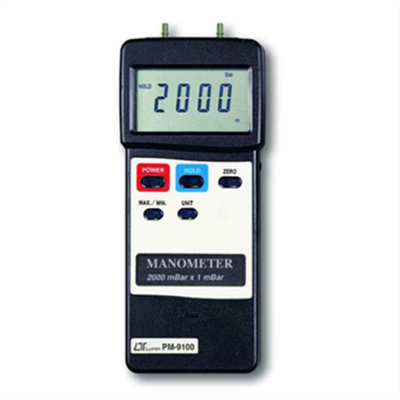

Testermeter-Lutron PM-9100 2000 mbar, Dual & differential input MANOMETER
Product Overview
Achieve Precision and Versatility with a Professional Dual & Differential Input Manometer The PM-9100 Manometer provides accurate and reliable measurements of pressure with dual and differential inputs, making it an essential tool for various industrial, laboratory, HVAC, and medical applications |
Exceptional Features of the PM-9100:
| 1. Dual & Differential Input: Measures pressure with a dual and differential input capability, offering a maximum range of 2000 mbar (2 bar). |
2. Multiple Applications: Suitable for industrial, laboratory, heating, ventilation, and medical environments. Designed for use with dry, non-corrosive, and non-ionic air and gas only (liquid is prohibited). |
3. Multi-Unit Display: Offers 8 selectable display units (mbar, psi, Kg/cm², mmHg, inchHg, meterH₂O, inchH₂O, Atmosphere) for versatile measurement options. |
4. User-Friendly Design: Features a large LCD display with contrast adjustment for optimal viewing, zero button for easy calibration, and records maximum and minimum readings with recall function. |
| 5. Advanced Connectivity: Includes an RS232 PC serial interface for data output, enhancing data management and integration with other systems. |
Specifications
| Circuit | Microprocessor LSI circuit. |
| Display | 61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size. |
| Display units | mbar, psi, Kg/cm^2, mm/Hg, inch/Hg meter/H2O, inch/H2O, Atmosphere. |
| Function | Dual & differential input, data hold, zero/relative, memory. |
| Zero adjust | Push button on the front panel. |
| Span adjust | Push button gain adjustment, usage P for calibration precisely if necessary. |
| Sensor | * Sensor is built inside the housing. * Piezoelectric sensor. * Used for dry, non-corrosive and . non-ionic air and gas only. * Liquid is prohibited. |
| Data hold | By push button. |
| Data record | Record maximum & minimum readings. |
| Data output | RS 232 PC serial interface. |
| Power off | Auto shut off, saves battery life, or manual off by push button. |
| Sampling time | Approx. 0.8 second. |
| Operating Temperature | 0 to 50 ( 32 to 122 ). |
| Operating Humidity | Less than 80% R.H. |
| Power supply | 006P DC 9V battery(heavy duty). |
| Power current | Approx. DC 8.5 mA. |
| Weight | 345 g/0.76 LB |
| Dimension | 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ) |
| Datalogger Sampling Time Setting range | / |
| Memory Card Advanced setting | / |
| Memory Recall | / |
| Accessories Included | Instruction manual: 1 PC. Hard carrying case: 1 PC. |
| Optional Accessories | * Data acquisition software ( Windows version ), SW-U801-WIN * RS232 cable, UPCB-01 * USB cable, USB-01 |
