NEJE 3 Max V2 N40630 Laser engraving machine CNC router tabletop wireless cutting machine cutting engraving machine GRBL wireless control DIY wood

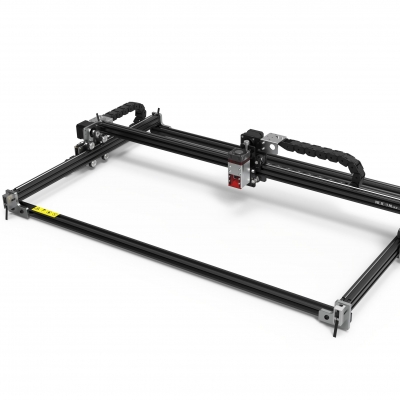

The NEJE 3Max-V2 is a versatile, large-format DIY laser engraving and cutting machine, featuring simple assembly, stable performance, and easy maintenance. As the fourth-generation improved model based on the NEJE 2 Max, NEJE 2s Max, and NEJE 3 Max, it enhances structural strength, smoothness, and precision by optimizing alloy material matching and structural design, along with comprehensive calibration using precision CNC machining. While ensuring portability and ease of use, it perfectly meets the needs of both beginners and commercial users.
The NEJE 3Max-V2 is highly portable, allowing you to easily pick it up with one hand and complete your projects outdoors. When not in use, it can also be conveniently hung on the wall.

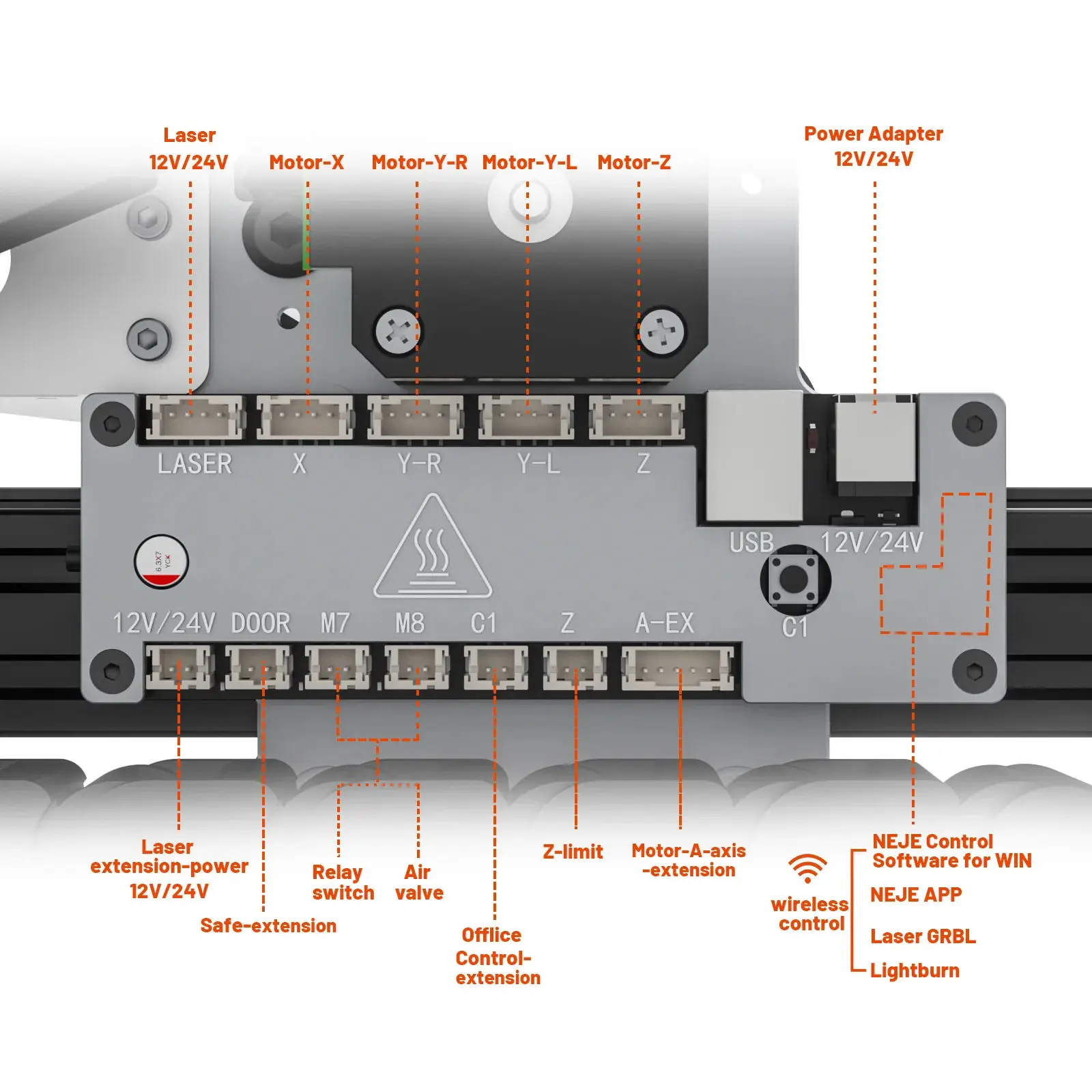

The new control system supports native Z-axis and A-axis functionality, enabling one computer to control countless devices. It also supports commercial production mode settings and LightBurn wireless mode.
The NEJE H20 optical precision module focus adjuster is also included. It is compatible with larger power modules like the E80, offering stability, ease of use, and high efficiency. If you wish to upgrade the machine, you can update the firmware and upgrade to an electric Z-axis to enhance the 3Max-V2's performance in multidimensional spaces. Alternatively, you can extend the X-axis and Y-axis to achieve an incredible work area. The all-new NEJE 3Max-V2 is an excellent assistant for both entry-level and commercial applications. |
Specifications

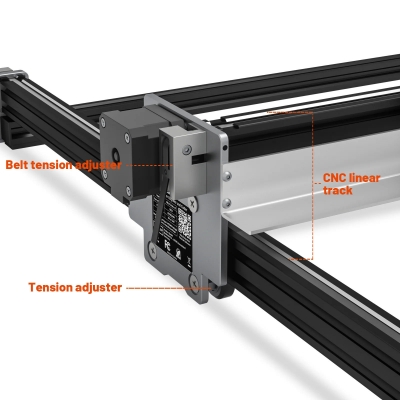

- **Frame Dimensions (L-W-H):** 970 x 582 x 60 mm - **Work Area (X-Y):** 790 x 470 mm, extendable to 790 x 1030 mm - **X-axis:** Industrial linear rail, bottom CNC linear correction - **Y-axis:** NEJE diamond CNC linear rail, smooth and durable - **Z-axis:** Industrial linear rail - **A-axis:** Rotary axis expansion - **Y-axis Extension:** Yes, NEJE provides linear extension rails, allowing the Y-axis to extend to 1030 mm. - **Limit Switches:** Built-in X, Y, Z - **Homing Repeat Position Accuracy:** 0.01 mm - **Repeat Position Accuracy:** X, Y: 0.01 mm; Z: 0.001 mm - **Recommended Acceleration and Maximum Speed:** 400 mm/s (The NEJE Max 4 has a longer acceleration stroke, achieving higher peak speeds compared to standard 400 x 400 mm frames.) - **Vertical Engraving:** Yes (90°) - **Input Voltage:** 12V or 24V, depending on module voltage matching - **Interface:** 5.5*2.1, Max 6A - **Compatibility:** All 12V and 24V NEJE modules - **M7, M8, Door Expansion:** Yes - **LightBurn Offline Control:** Yes - **LaserGRBL Offline Control:** Yes - **BLE Bluetooth Functionality:** Supports Bluetooth 4, Windows 10, iOS 8, and Android 4.2 or higher. - **App Control:** Yes - **MEMS Protection:** Yes - **NEJE Software OTA Upgrade:** Yes - **Software:** NEJE Win software, NEJE app, LightBurn, LaserGRBL - **Firmware:** Built-in NEJE firmware and GRBL 1.1f (optimized) - **Supported Systems:** Win 7/Win 8/Win 10, Android, iOS, iPadOS, macOS - **Supported File Formats:** GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc. |
