MINI-5E Ultrasonic Flaw Detector

  • Main Feature :
  • Serial No. : Zoe756
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

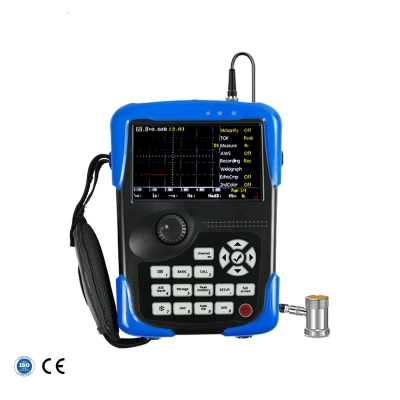

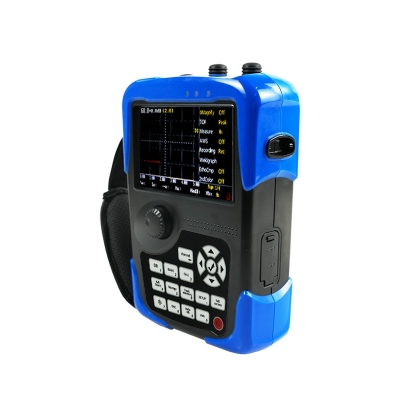

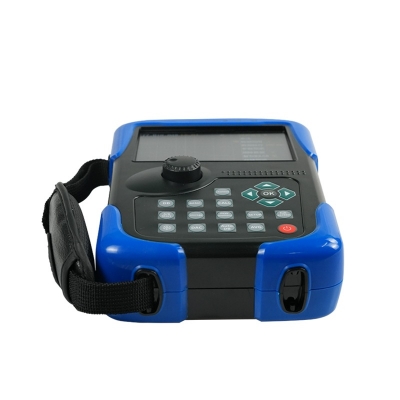

MINI-5E Ultrasonic Flaw Detector



Parameters

Detection range: 0-5000mm (steel longitudinal wave)

Speed of sound: 1000-15000 Detection sensitivity ≥ 60db Dynamic range ≥ 42db

Horizontal linearity error ≤ 0.2% Vertical linearity error ≤ 3% Remote resolution ≥ 26db

Language: Chinese-English-Russian

Protection level: IP54

Spurious wave suppression: no

Memory: 8G B

Transmit pulse: 400V tip pulse

Noise reduction: no

Weight: 1KG

American Welding Society Standard aws: none

Waveform Comparison: none



1. Waterproof grade IP54, waterproof, dustproof, drop-proof. Instruments on the market are generally not waterproof and moisture-proof, dust-proof, drop-proof. In the south, or the north of some humid environment, the instrument for a long time in the humidity, dust and other environments, will lead to circuitry and chips, components to accelerate aging, failure rate is very high!

2. All the chips of the instrument are 100% imported high-performance chips to ensure better accuracy and sensitivity, more stable performance, and less noise.

3. The weight of the whole machine 1kg (including batteries), instrument humanized design, flaw detection function keys can be left-handed a thumb to grasp all and set.

4. Containing the American Welding Society aws standard, and the domestic weld national standard. Performance and internationalization.

5. The secondary wave color is automatically differentiated to solve the problem of misjudging the location of defects.

6. Hardware sampling rate of 400MHZ, to ensure that the sampling data is true and reliable.

7. The gate automatically seeks for defective wave function, which improves the detection efficiency by several times.

8. Standard 8G memory, built-in 2 usb interface, easy to quickly read the data, the market instruments are basically only through the cumbersome preservation, and through the data line connected to the computer, and then through the software on the computer in order to read out the data, in terms of exporting data, the efficiency of hundreds of times.

9. Forging, casting and other parent material flaw detection, can break through the market instruments can only be made on the test block more than 100mm avg curve. That is to say, when detecting very thin workpieces, avg curves can be made, and during flaw detection, the size of defects can be read out directly from very thin workpieces.

10. Noise suppression, noise reduction and other functions, can be in the detection of some extreme workpiece, hidden interference wave, so that the defect wave easier to be captured.

11. The instrument uses Mitsubishi imported industrial TFT color LCD screen (screen clarity can be played directly on the movie), the market screen is basically a simple monochrome screen.

12. The keys are waterproof gold finger design, life expectancy of more than 10 years.

Remarks: 1. Range, speed of sound, flaw detection sensitivity margin, dynamic range, horizontal linearity error, vertical linearity error, far-field resolution is mainly measured ability, accuracy, storage can support the probe range. 2. Clutter suppression, noise reduction, secondary wave color for small defects, special defects have better recognition.

1. Waterproof grade IP54, waterproof, dustproof, drop-proof. Instruments on the market are generally not waterproof and moisture-proof, dust-proof, drop-proof. In the south, or the north of some humid environment, the instrument for a long time in the humidity, dust and other environments, will lead to circuitry and chips, components to accelerate aging, failure rate is very high!

2. All the chips of the instrument are 100% imported high-performance chips to ensure better accuracy and sensitivity, more stable performance, and less noise.

3. The weight of the whole machine 1kg (including batteries), instrument humanized design, flaw detection function keys can be left-handed a thumb to grasp all and set.

4. Containing the American Welding Society aws standard, and the domestic weld national standard. Performance and internationalization.

5. The secondary wave color is automatically differentiated to solve the problem of misjudging the location of defects.

6. Hardware sampling rate of 400MHZ, to ensure that the sampling data is true and reliable.

7. The gate automatically seeks for defective wave function, which improves the detection efficiency by several times.

8. Standard 8G memory, built-in 2 usb interface, easy to quickly read the data, the market instruments are basically only through the cumbersome preservation, and through the data line connected to the computer, and then through the software on the computer in order to read out the data, in terms of exporting data, the efficiency of hundreds of times.

9. Forging, casting and other parent material flaw detection, can break through the market instruments can only be made on the test block more than 100mm avg curve. That is to say, when detecting very thin workpieces, avg curves can be made, and during flaw detection, the size of defects can be read out directly from very thin workpieces.

10. Noise suppression, noise reduction and other functions, can be in the detection of some extreme workpiece, hidden interference wave, so that the defect wave easier to be captured.

11. The instrument uses Mitsubishi imported industrial TFT color LCD screen (screen clarity can be played directly on the movie), the market screen is basically a simple monochrome screen.

12. The keys are waterproof gold finger design, life expectancy of more than 10 years.

Remarks: 1. Range, speed of sound, flaw detection sensitivity margin, dynamic range, horizontal linearity error, vertical linearity error, far-field resolution is mainly measured ability, accuracy, storage can support the probe range. 2. Clutter suppression, noise reduction, secondary wave color for small defects, special defects have better recognition.
