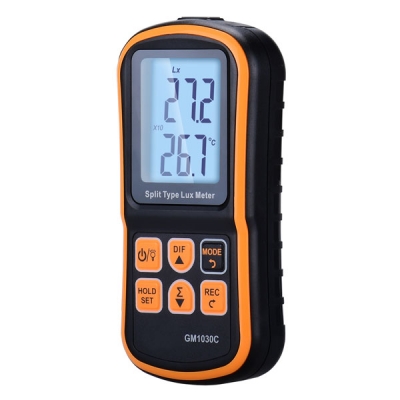

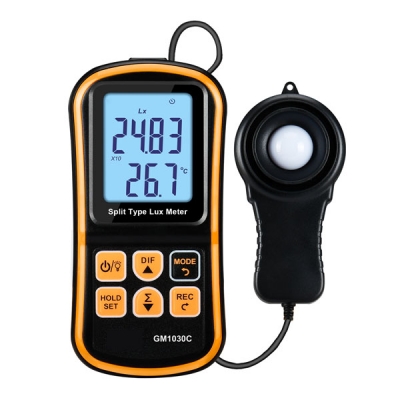

TesterMeter-Lux Meter Photometer Handheld Split Type Lux Meter GM1030C
Split type illuminometer is a professional instrument for measuring light intensity and brightness, which is used in light intensity measurement engineering, quality control, health care and light intensity measurement in various surroundings, such as factories, schools, offices, transportation and homes. |
Features
Split Type Lux Meter possesses the following features: This can split type illuminometer measure current value, maximum value, minimum value and difference value of illumination and temperature,but also hold illumination and temperature data, calculate illuminance integral and averageintegral averaging and record data. 2.Two recording modes: automatic storage of illumination data (up to 2000 groups) and manual storage (up to 60 groups) 3.Automatic range and quick response, measuremwent in environment with insufficient light. 4.Screen backlight for darkroom operation. 5.Auto-off after no operation for a long time (the default span is 10 mins and can be reset) |
Specifications
| Illumination probe | Silicon Diode | ||
| Iluumination range | 0 ~ 200,000Lux（0 ~20000Fc）, divided into four gears | ||
| Gear | Gear range | Minimum resolution | Accuracy |
| X1 gear | 0.0 ~ 199.9Lux | 0.1 Lux | ±3%rdg+5dgts |
| X10 gear | 20.0*10 ~ 199.9*10Lux | 1 Lux | ±3%rdg+10dgts |
| X100 gear | 20.0*100 ~ 199.9*100Lux | 10 Lux | ±4%rdg+10dgts |
| X1000 gear | 20.0*1000 ~ 199.9*1000Lux | 100 Lux | ±4%rdg+10dgts |
| Repeatability | ±2% | ||
| Refresh rate | 2 times/second | ||
| Temperature probe | NTC Thermistor | ||
| Temperature range | -20 ~ 50℃（-4 ~ 122℉） | ||
| Temperature accuracy | ±1.0 ℃ | ||
| Power | Three AAA batteries | ||
