Function

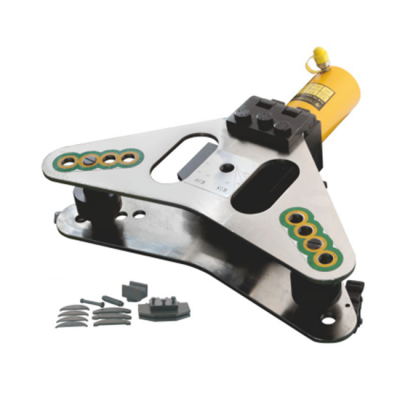

1.It is designed for bending bus bar in 125mm used in powergenerationfactory.power transmission station and copper bus bar and aluminum bus bar. 2.2 in I horizontal and erective bending available.It's really one machinein two function. 3.The hydraulic cylinder with 35 Ton of outlet force. It's very powerful inquick speed and high efficiency. 4. lt is made in flip style for easy taking workpiece. 5.The unit body is made from high tough alloy steel. As a result, it's lightweight for carrying conveniently. Bending bus bar smoothly 6.Ouick coupling foreasy load and unload. 7.Standard and assembling;Horizontal bending die:One moveable die.two errective poles, one adaptor.Erective bending die.one die frame.twobig grip plank.two small grip plank.seven crescent die plate,two support for erective bending. |
Specifications
| Form | Output(T) | Weight(kg) | Working Range(mm) | Size(mm) | Max Width(mm) | Max Thickness(mm) | Body Weight | Stand Bend Accessories(mm) | Flat Bend Accessories(mm) |
| Single active oil pressure Type | 35 | 90 | 290 | Machine Seat Width 680 Total Length Of Oiling Cylinder 770 | 40、50、60、80、100、125 | 4、6、8、10、12 | 90kg (One Piece For Wing+Oil pressure Cylinder And Upper/Lower Template Die） | Die ×7set Wheel Seat×2 Bolt×2 Lining Bar×4 | Upper,Lower Modle×1 Fixed Bolt×2 Bending Angle 90 Degrees |
| Thickness of Copper Bus Bar(mm) | Width of Copper Bus Bar(mm) | Bending Dies For Assembling(mm) | Bending Angle | Bending Shape R Inner Radian(mm) |
| 4 | 40,50,60 | 1 | 90 | 110 |
| 5 | 80 | 1 | 90 | 140 |
| 6 | 80 | 1 | 90 | 140 |
| 8 | 100 | 1 | 90 | 160 |
| 10 | 100 | 1 | 90 | 160 |
| 10 | 125 | 1 | 90 | 160 |
| 12 | 125 | 1 | 90 | 160 |
