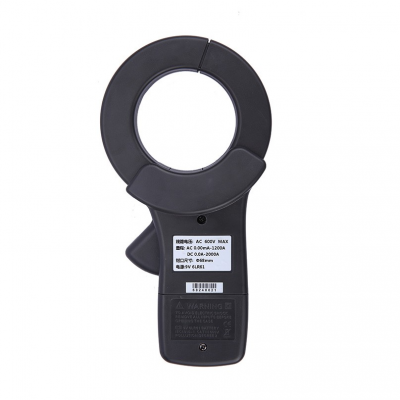

Ⅰ. INTRODUCTION
| Xtester-ETCR6800D Clamp Meter is specially designed for measurement online of AC/DC leakage current with voltage below 600V; by adopting up-to-date CT technology and digital integration technology, There is not metallic conductor outside the clamps, non-contact test to ensure save. It is a product with relatively small size, large clamp, high accuracy and perfect function, widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining. It is essential tool for electrician safety testing. This High Accuracy Clamp Leaker have the function of peaking holding, data holding data storage; obtains one USB interface. With the help of the software that we provide, many functions are available. For example, the meter can realize on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value and indication, alarm value setting, indication of alarm value, historical data inquiry, export, and print. |
Ⅱ.APPLICATION
TECHNICAL SPECIFICATION
Function | Measure AC/DC current, peak hold, online monitor |
Size of clamp | Φ68mm |
Range | DC:0.0A~2000A AC:0.0A~1500A |
Accuracy | ±2%rdg±3dgt |
Resolution | 0.1A |
Dimension | 224mm×115mm×43mm |
Data interface | USB |
Weight | 515g(with battery) |
Power Supply | Zn-Mn dry battery 6F22 9V, lasting for100hours |
Test Mode | Clip-on CT, noncontact mode |
Display Mode | Four digits LCD display |
LCD Dimension | 35mm×21.5mm; display domain: 32mm×15mm |
Frequency | AC 45Hz~400Hz |
Sampling Rate | 2 times/s |
Polarity Indication | DC current auto identified and display“—” |
Test Position | Tested wire in the jaw center; Error will increase to 1.5%rdg max if deviate the center |
Range Shift | Automatically |
Line Voltage | AC600V |
Software | with the software the data can upload to computer |
Data Memory | 99units, FULL blinks when the memory is full |
Peak Hold | Push HOLD without release, the meter will show the peak value during the pushing period |
Reading Hold | DH indicating the reading is hold |
Out of Range | OL indicating the current is out of range |
Auto Power-off | 5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage | Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Consumption | 10mW |
Temperature and Humidity | -10℃~50℃; Below 80%rh |
Max error refer to environment | -10℃~0℃,40℃~50℃,Error will increase max to 1%rdg |
Temperature and Humidity for storage | -10℃~60℃,below 70%rh |
Insulating Strength | AC2kV/rms. (between the alloy of the clamp and the housing) |
Applicable safety rules | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |

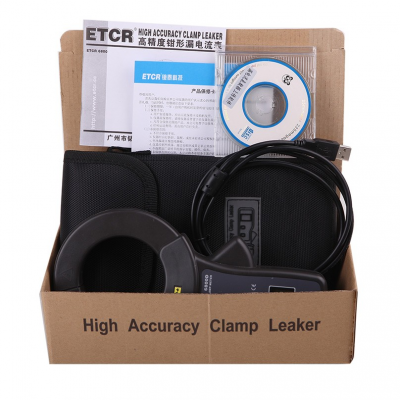

Accessories | Meter: 1pc; USB communication line: 1pc; software: 1pc; battery (6F22 9V):1pc. |
