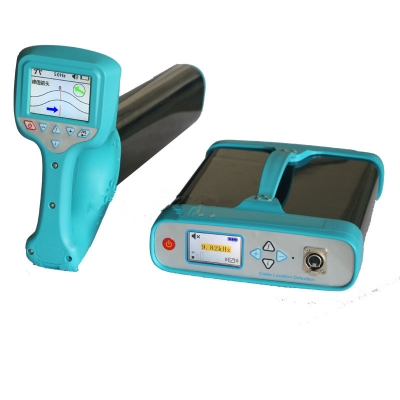

Xtester-HP-R30 power cable pipeline comprehensive detector

INTRODUCTION

Xtester-HP-R30 power cable pipeline comprehensive detector is an instrument specially designed for the power sector to test the cable path position and burial depth under live and power outage conditions. It also has a powerful identification function for a target cable under the operation status of the cable. The entire function can achieve comprehensive and convenient testing for the power sector on power cable migration, channel rectification, operation and maintenance, and fault handling.

FUNCTION

Xtester-HP-R30 power cable pipeline comprehensive detector fully molded structure, in line with the usage habits of human mechanics; Integrated circuit design with extremely high functional stability; Three signal loading methods, covering different on-site requirements; Functionally equipped with compass indication, greatly improving testing efficiency; Low power dry battery power supply, suitable for cable testing in outdoor environments.

TECHNICAL SPECIFICATION

Transmitter

Output frequency: 982Hz, 9.82kHz, 83.1kHz;

Power supply: It can be powered by dry batteries or lithium batteries, with a continuous working time of no less than 8 hours;

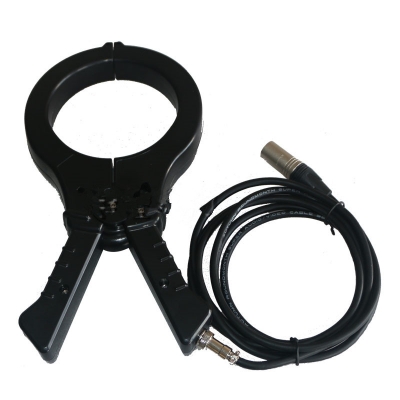

Live: No power outage required, with two modes of operation: induction mode and clamp mode;

Sensor: Made of specially made manganese zinc ferrite material and combined with a special coil winding method, it suppresses magnetic saturation in both directions.

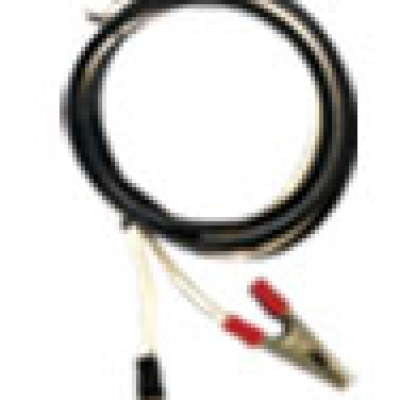

There are three optional modes: direct connection mode, clamp mode, and induction mode;

Automatic pattern recognition;

Three optional output powers;

Receiver

Equipped with compass indication function, it can accurately indicate the direction trend of the target cabl
Has depth measurement function, able to measure the burial depth of the target cable;

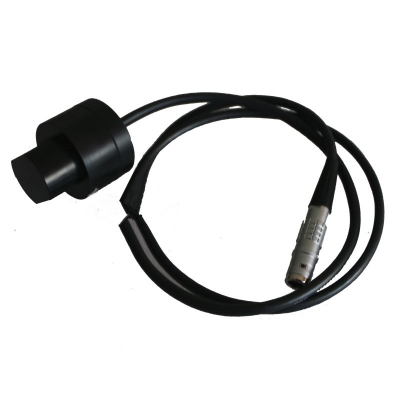

Used in conjunction with a stethoscope, with the function of identifying live cables;
Measurable frequencies: 50Hz, 982Hz, 9.82kHz, 83.1kHz;
Power supply: It can be powered by dry batteries or lithium batteries, with a continuous working time of no less than 8 hours;
