TesterMeter-Film Coating Thickness Gauge GM200A

Main Feature :
Serial No. : Lisa0495

Specification

Contact US For Quotation

Email:464560351@qq.com

Whatsapp&Wechat:+8618620373879

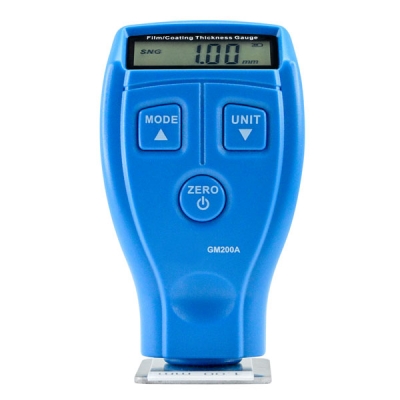

TesterMeter-Film Coating Thickness Gauge GM200A

This product is a portable coating thickness gauge,which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint,film, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry, Car washing industry, metal processing industry, chemical industry,and commodity inspection.

Features

Mini Coating Thickness Gauge possesses the following features:

1.Measure coating thickness of metal substrate surface
2.Two modes: Car/User
3.Three measurement ways: single measurement,continuous measurement, difference value measurement
4.Three calibration functions: zero calibration,two-point calibration, and basic calibration
5.Metric unit and imperial unit
6.Auto power off

Specifications

Measurement range	0 1.80m 71.0 ~ m/0~ mil
Car mode resolution	0.05mm/2mil
User mode resolution	0.01mm/1mil
Measurement error	±0.1mm
Minimum diameter of substrate	50mm
Minimum thickness of substrate	0.5mm
Temperature range	18~30℃
Work humidity range	10~80%RH
Power	2*1.5V AAA batteries

Lable: TesterMeter-Film Coating Thickness Gauge GM200A
