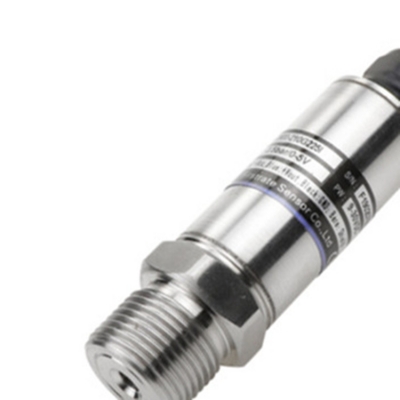

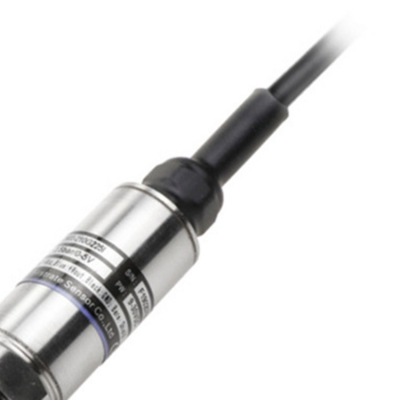

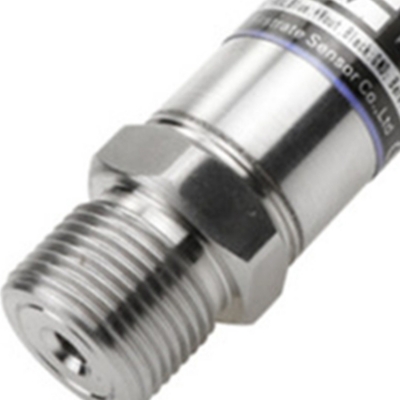

Testermeter-FST800-210 Low Pressure Type Pressure Transmitter
【Product Features】
| ● High-efficiency lightning protection, anti-RF and electromagnetic interference protection ● Stainless steel structure, good medium compatibility ● Advanced temperature digital compensation function, wide operating temperature range ● High precision, high frequency response, good long-term stability |
【Application Range】
| ● Industrial process detection and control ● Hydraulic and pneumatic control systems ● Automated detection system ● Pump station and water treatment system ● Industrial machinery manufacturing |
【Technical parameter】
Range | -1~6Bar (gauge pressure) |
Output signal | 4~20mA，0.5~4.5VDC，0~5VDC，0~10VDC |
Precision | ±0.25%FS,±0.5%FS |
Signal Line Specifications | 2Wire（4~20mA），3Wire（0.5~4.5VDC，0~5VDC，0~10VDC） |
Supply voltage | 9~30VDC（4~20mA，0~5VDC），5VDC（0.5~4.5VDC），15~30VDC（0~10VDC） |
Medium temperature | -40℃~+85℃ |
Storage temperature | -40℃~+125℃ |
Temperature compensation | -20℃~+85℃ |
long-term stability | ≤±0.1%FS/年 |
Allow overload | 150%FS |
Breaking pressure | 200%FS |
Shock (11mS) | 100g |
Zero temperature drift | ±0.02%FS/℃ |
Full scale temperature drift | ±0.02%FS/℃ |
Pressure port | M20*1.5, G1/4, NPT1/4 (can be customized) |
Electrical connections | M12 connector, direct outlet, Packard connector, large/small Hessmann (customizable) |
Degree of protection | IP65 |
Material | 304 stainless steel |
