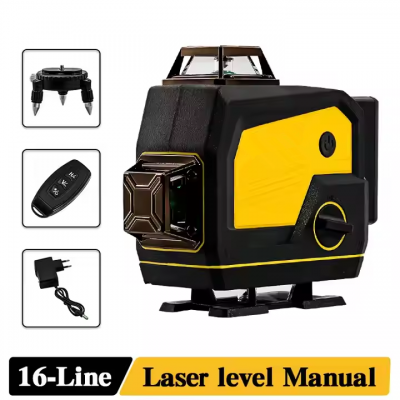

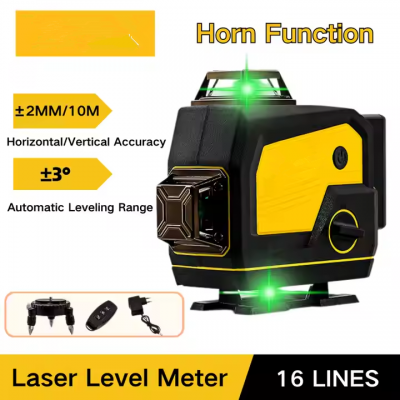

Testermeter-DW080-Dewalt Bluetooth Audio 16 Lines 360° Laser Level Meter Green Laser Automatic Self-Leveling Tool Horn Function for DIY Grading
Product descriptions from the supplier
Features:
| Laser ray: | 360° *4 16 Lines (4D) |
| Horizontal/vertical accuracy: | ±2mm/10m |
| Automatic leveling range: | ±3 |
| Waterproof grade: | IP-54 |
| Green light working temperature: | -5℃~50℃ |
| rated voltage: | 3.7V |
| Working range: | about 25m in diameter |
| Working time: | about 5 hours |
Instructions:
| 1) Place the instrument on the tripod, T-type wall mounting bracket or lifting platform as needed; |
| 2) Push the main power switch forward to the ONposition and the machine starts to work. Thehorizontal window automatically opens and produces four horizontal laser rays; |
| 3) Touch H key on the touch panel to control horizontal opening and closing; |
| 4) Touch the V key on the touch panel once, open a vertical window with one click (tick), repeat again, the second vertical window opens, and the third touch closes two vertical windows; |
| 5) Long touch the key for more than 3 seconds, and a click(tick) will be heard, and turning on the diagonal function.At this time, you can adjust it to the angle you want without alarm or flashing. Touch this key again for more than 3 seconds, with one click(tick) to release this Cfunction, the instrument works normally. |
Note:
| The positive and negative terminals of the battery are TTproperly installed. Please remove the battery if it is not used for a long time. Please charge for more than 10 hours when you use it for the first time. Please turn off the main switch after use. |
| Please use the charger that matches the machine to charge. |
| Please use this machine in the environment where this machine is described. |
