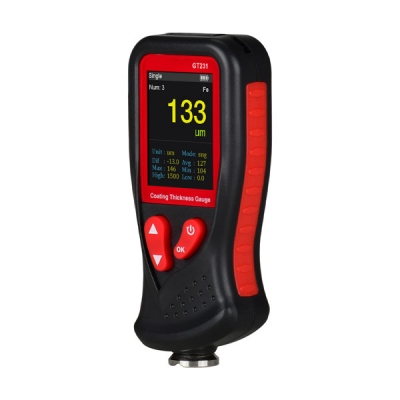

TesterMeter-Coating Thickness Guage GT231
This product is a color-screen portable coating thickness gauge with high- definition display, which can quickly, non-destructively and accurately me-asure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal sub-strates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas. |
Features
1.Menu operation and color-screen HD display. 2.Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate . 3.Two measurement methods: single measurement, continuous measurement. 4.Basic calibration and Zero-point calibration available. 5.Metric/imperial unit and storage function. 6.Screen rotation, charge protection, multi-interface displays, screen brightness selection. 7.Voice broadcast. 8.Automatic shutdown. |
Specifications
Measurement range | 0 ~ 1800μm/70.8mil |
| Resolution | ( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil |
| Measurement error | ≤150μm ±5μm ＞150μm ±(3%H+1μm) |
| Minimum diameter of magnetic metal substrate | 12mm |
| Minimum thickness of magnetic metal substrate | 0.5mm |
| Minimum radius of curvature for magnetic convex substrate | 2mm |
| Minimum radius of curvature for magnetic concave substrate | 11mm |
| Minimum diameter of non-magnetic metal substrate | 50mm |
| Minimum thickness of non-magnetic metal substrate | 0.5mm |
| Working voltage | DC 3.7V (Lithium battery capacity 1000mAh) |
| Number of data storage | Max. 1500 pens |
| Size | 52.9*26*117mm |
| Weight | 102.4g(including battery) |
