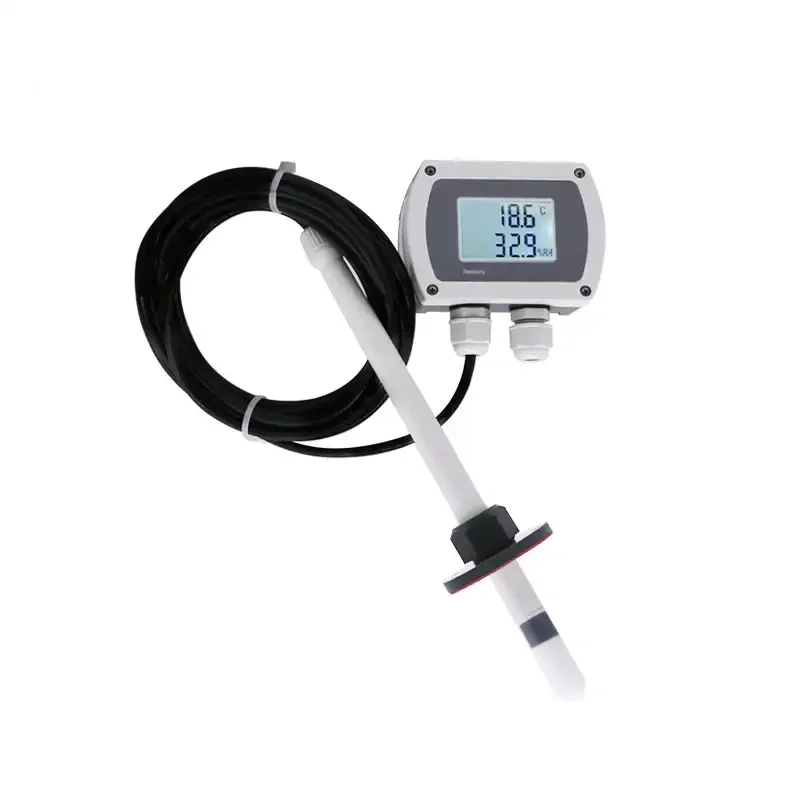

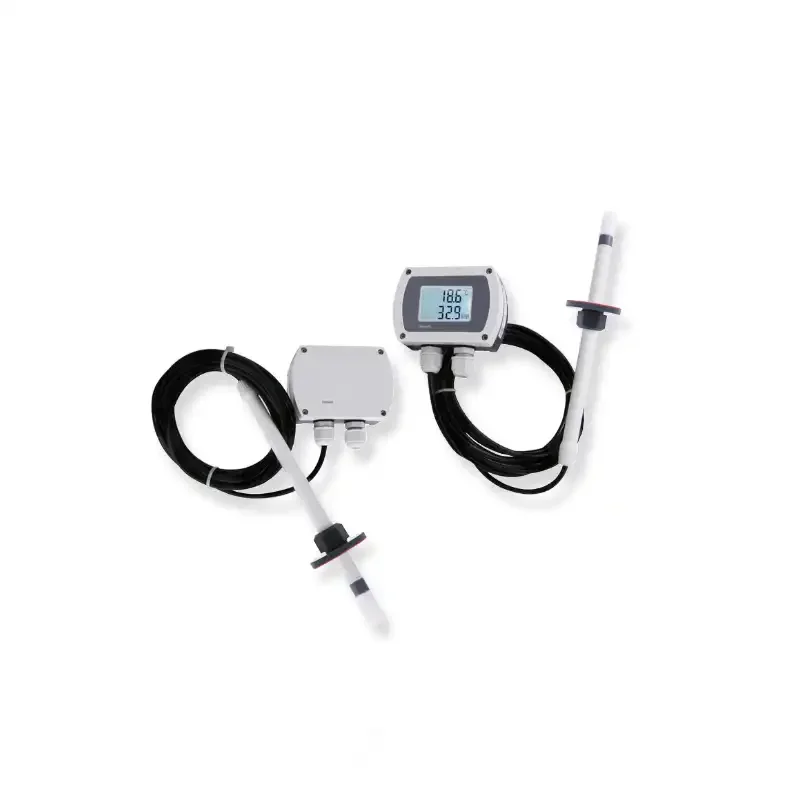

CWS21 Split Temperature And Humidity Transmitter with and without display two options

  • Main Feature :
  • Serial No. : Zoe362
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter- CWS21 Split Temperature And Humidity Transmitter with and without display two options



CWS21 split temperature and humidity transmitter is carefully designed and of excellent quality, suitable for temperature and humidity monitoring in various pipelines or boxes, the temperature range can be adjusted, with and without display two options, and cost-effective.



Technical parameters

Range: Temperature -40~0~125°C Humidity 0-100%RH (relative humidity) output: RS485, 4-20mA, 0-10VDC Power supply: 12~24VDC, 24VDC



[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.]



Typical applications

Ventilation duct temperature and humidity control, HVAC, etc., constant temperature and humidity controller/box, etc



Measuring medium

Gas (compatible with contact material)



Technical parameters

Basic parameters


Measuring medium

Gas (compatible with contact materials)

Medium temperature

-40~0~125℃

Temperature range

-40~0~125℃

Humidity range

0-100%RH(Relative humidity)

Overall weight

With display ≈ 380g, without display ≈ 356g

Response frequency

≤2Hz

Stable performance

±1%RHFS/year, ±0.2℃/year

Protection level

IP65

responding speed

Temperature response time, without filter: 15s, with filter: 55s; humidity response time, without filter: 15s, with filter: 35s (temperature in steps of 10°C, humidity in steps of 10%RH, gas flow rate: 0.1m/s)

Output power supply


output signal

4~20mA,RS485,0~10VDC

Power supply range

12~24VDC, 24VDC

Maximum power


4~20mA

Without display ≤ 0.05Us(W), With display ≤ 0.06Us(W)

RS485

No display ≤ 0.015Us(W), Display ≤ 0.025Us(W)

0~10VDC

No display ≤ 0.015Us(W), Display ≤ 0.025Us(W)

Load characteristics


Voltage Type

≥100kΩ

Current Type

≤200Ω

Environmental conditions


Ambient temperature:

-40~85℃

environment humidity:

0%~95%RH(no condensation, no condensation)

Electrical protection


Short circuit protection

permanent

Reverse polarity protection

No damage, but not working

Insulation resistance

≥100MΩ,500VDC

Dielectric strength

500VAC

Output Limitation


4~20mA

Output minimum 4mA, output maximum 20mA

RS485

The minimum output is 0, and the maximum output is 1650/1000

0~10VDC

Output minimum 0.001VDC, output maximum 10VDC

Overall material


Main shell

ABS engineering plastics

filter

Polyethylene (density 50μm) (contacting the measured medium)

Cable locking head

Nylon (locking wire diameter 4-6mm)

show

LCD display with backlight

Mounting flange

ABS engineering plastics (contacting the measured medium)

Insert the probe

ABS engineering plastics (contacting the measured medium)

Seals

Nitrile rubber/silicone (contacting the measured medium)

Cables

Polyurethane

Mechanical stability


Vibration resistance

5g (20…2000Hz) complies with IEC60068-2-6 standard

Impact resistance

500g/1ms in accordance with IEC60068-2-27 standard

  1.png 2.png 3.png
