CWDZ33K Armoured Plug-In Temperature Transmitter

  • Main Feature :
  • Serial No. : Zoe346
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

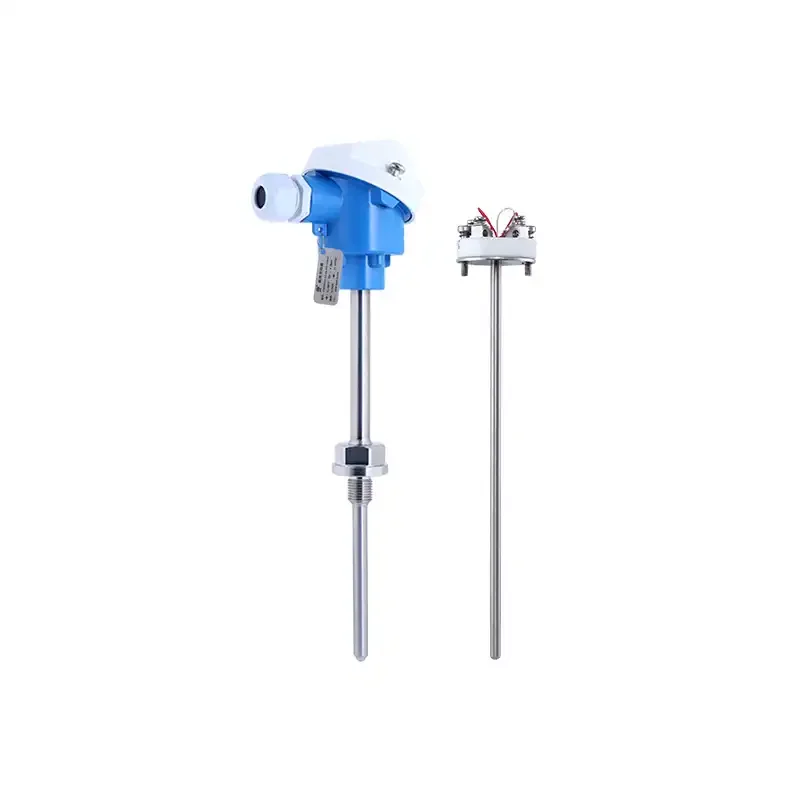

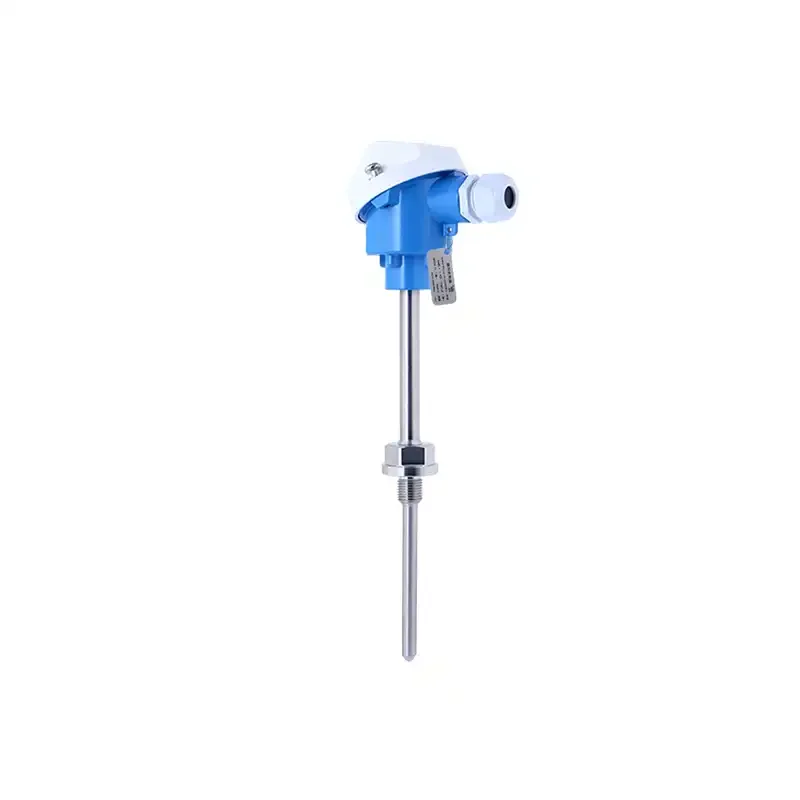

Testermeter-CWDZ33K Armoured Plug-In Temperature Transmitter



CWDZ33K armoured plug-in temperature transmitter is carefully designed and uses a special process to enhance dielectric strength and electromagnetic compatibility. Suitable for general industry, a variety of interfaces, suitable for different working conditions of choice.



Technical parameters

Range: -200~500°C (see range parameter selection table for details) Output: 4~20mA, RS485, Pt100 Power supply: 12~36VDC accuracy: 0.25%FS, 0.5%FS



[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]



Typical applications

General industry



Measuring medium

Liquids or gases, etc. (compatible with contact materials)



Technical parameters

Measuring medium

Liquid or gas, etc. (compatible with contact material)

Measuring range

-200~500℃ (See range parameter selection table for details)

output signal

4~20mA,RS485,Pt100

Supply voltage

12~36VDC

Measuring element

1*Pt100 (1/3B grade)

Response time

Protection tube φ10mm≈36s (compliant with IEC60751, 0.4m/s water flow, 10°C step)

Stable performance

±0.1% FS/year

Connection time

400ms

Protection level

IP65 Note: The above protection level refers to the level achieved after the electrical connection is complete.

Overall weight

≈400g

Accuracy level

0.25%FS, 0.5%FS

Resolution

Analog output 0.02%FS, digital output 0.1℃

Maximum power


4~20mA

≤0.02Us(W)

RS485

≤0.015Us(W)

Load characteristics


Current Type

Load ≤{(Us-9)/0.02(Us=supply voltage)}Ω

Environmental conditions


Ambient temperature

-40~85℃

environment humidity

0%~95%RH (no condensation and no condensation)

Electrical protection


Short circuit protection

permanent

Reverse polarity protection

No damage, but not working

Insulation resistance

≥100MΩ,500VDC

Dielectric strength

500VAC

Overall material


Protective tube material

304 stainless steel (contacting the measured medium)

Process connection

304 stainless steel (contacting the measured medium)

Cable locking head

Nylon (locking wire diameter 5~9mm)

shell

Die-cast aluminum

Mechanical stability


Vibration resistance

10g (20…2000Hz) in accordance with IEC60068-2-6 standard

Impact resistance

500g/ms, in compliance with IEC60068-2-27 standard

Output Limitation


4-20mA

Output minimum 2.5mA, output maximum 26mA

RS485

Output minimum 0, output maximum 3500/7000
