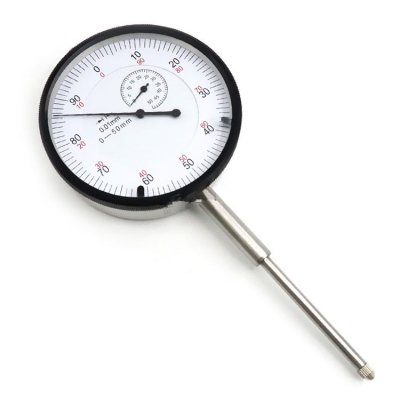

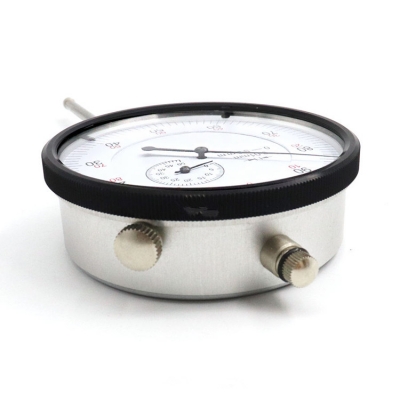

Testermeter-CTDI050-Factory Direct 0-50mmx0.01mm Mechanical Measurement Instruments Pointer Dial Gauge Dial Indicator

Main Feature : Testermeter-CTDI050-Factory Direct 0-50mmx0.01mm Mechanical Measurement Instruments Pointer Dial Gauge Dial Indicator
Serial No. : Owen0340

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-CTDI050-Factory Direct 0-50mmx0.01mm Mechanical Measurement Instruments Pointer Dial Gauge Dial Indicator

Features

High-precision Mechanical Measurement

System Range and Precision Adaptation: It provides a linear measurement range of 0 - 50mm.

Combined with the design of a 0.01mm division value, it can achieve a measurement repeatability of ±0.04mm (referring to the precision standards of similar products), meeting the basic precision requirements of scenarios such as machining and mold manufacturing.

For example, in the diameter detection of shaft parts or the positioning adjustment of tooling, it can accurately identify small size deviations.

Gear and Rack Transmission Principle: Through a precise rack and pinion mechanism, the linear displacement of the measuring rod is converted into the rotation angle of the pointer, ensuring a stable transmission ratio and avoiding signal interference or drift problems that may occur in electronic components. 2. Durable Structural Design

Pordout Descfription

Model Number	CTDI050
Material	Aluminium alloy
Range	0-50mm
Resolution	0.01mm
Accuracy	A
Dial diameter	60mm

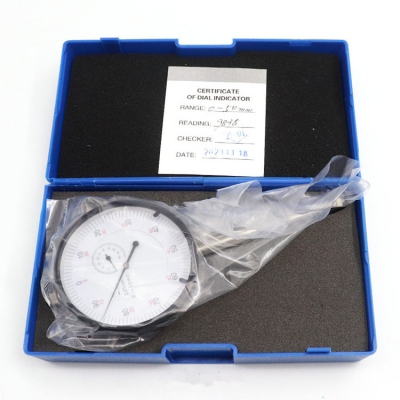

Packing way	plastic box
N.W	393g

Lable: CTDI050,Factory Direct 0-50mmx0.01mm, Mechanical Measurement Instruments, Pointer Dial Gauge,Dial Indicator
