Xtester- CEM BX-500 Temperature Calibrator Dry Bath Thermometer For Calibration

  • Main Feature :
  • Serial No. : Zoe008

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester- CEM BX-500 Temperature Calibrator Dry Bath Thermometer For Calibration

Specifications

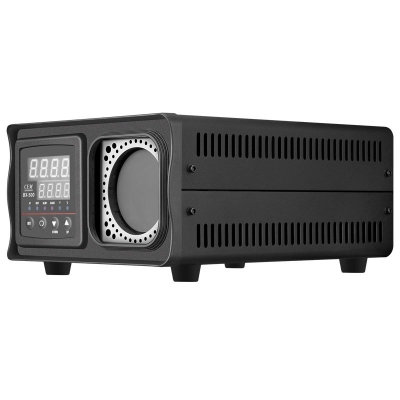

BX-350/BX-500 portable IR calibrators are used for calibrating long distance Infrared Thermometer, which are designed as handhold and small calibrators.

Easily certify IR pyrometers to 500°C/932°F (BX-500)
Large 2.25" (57 mm) blackbody target
RTD (Resistance Thermometer detector) reference well for high precision
Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. Portable IR Calibrator provides a stable lackbody target for calibrating non-contact IR thermometers up to 500ºC (BX-500).

Size(HxWxD): 180mm x 114mm x 233mm
Weight: 2682g

SpecificationsBX-350BX-500
Temperature Range50ºC ~ 350ºC/ 122ºF ~ 662ºF50ºC ~ 500ºC/ 122ºF ~ 932ºF
Accuracy±0.5ºC @ 100ºC/ ±1.0ºF @ 212ºF     ±1.2ºC @ 350ºC/ ±2.4ºF @ 662ºF±0.5ºC @ 100ºC/ ±1.0ºF @ 212ºF      ±1.8ºC @ 500ºC/ ±3.6ºF @ 932ºF
Stability±0.1ºC @ 100ºC/ ±0.2ºF @ 212ºF     ±0.2ºC @ 350ºC/ ±0.4ºF @ 662ºF±0.1ºC @ 100ºC/ ±0.2ºF @ 212ºF   ±0.3ºC @ 500ºC/ ±0.6ºF @ 932ºF
Target size2.25” (57mm)2.25” (57mm)
Target Emissivity0.950.95
Resolution0.1ºC/ºF0.1ºC/ºF
Heating Time30 minutes to max40 minutes to max
Cooling Time30 minutes max to 100ºC45 minutes max to 100ºC
Power230 VAC (±10%), 1.5 A; or 110V AC, 3A
Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibrationstandard to verify accuracy. Portable IR Calibrator provides a stable blackbody target for calibrating non-contact IR thermometers up to 500ºC (BX-500).

The portable IR calibrator features a large temperature controlled blackbody target with a diameter of 2.25" (57 mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1° from 50ºC to 500ºC (BX-500).

For even higher precision, a contact calibration well is located directly behind the blackbody surface.Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1ºC canbe achieved.
