BR-smart 128s CO2 meter PM2.5 air quality monitor PM1.0 Dust analyzer PM10 Particles TVOC tester Formaldehyde detector

  • Main Feature :
  • Serial No. : Zoe406
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool- BR-smart 128s CO2 meter PM2.5 air quality monitor PM1.0 Dust analyzer PM10 Particles TVOC tester Formaldehyde detector



(PM1.0 PM2.5 PM10 VOC Formaldehyde CO2 6-channel particle number)

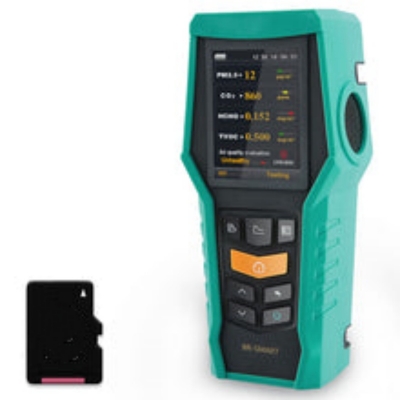

BLATN BR-Smart series is a real-time air quality monitoring instrument used to detect indoor air quality.



Smart series monitor use high-precision sensor and translate the pollutant concentration in the air directly into intuitive data to provide air quality monitoring information and effective protection for your family health.



The advanced core technology adopts high precision import sensor, the sensor drift error is the lowest in the industry, through the patented algorithm can eventually accurately distinguish virus-level particulate matter.

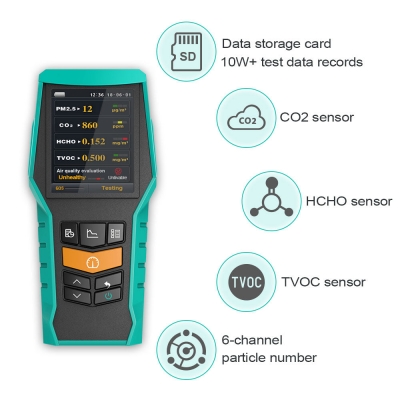

SMART series can detect a variety of air pollutants, including PM2.5, PM10, formaldehyde, TVOC , CO2 etc.



More set up a professional man-machine interface interaction, accurate display of data change curve, external TF memory card function, maximum support 8G TF card, storage capabilities more powerful, can clearly monitor the air.



Product Highlight

More SensitiveHigh-precision Laser Sensor, accurate resolution of 0.25ug / M3 particles

More AuthoritativePM 2.5 / PM10 adopts patent algorithm in cooperation with CMA

More accurateHigh precision formaldehyde sensor, accurate resolution of 0.01mg/m3 free formaldehyde molecules

More credibleHigh-performance TVOC sensor imported from FIGARO


Product Features

1. Can detect a variety of pollutants, including PM1.0 PM2.5, PM10, formaldehyde, TVOC, CO2 etc.



2. 2.4-inch large screen, grainy low, high pixel, large visual range



3. Active air interactive system, silent fan, lower noise, longer life expectancy



4. Sampling work more than 5 hours, long standby



5. Accurate data curve drawn, the trend of air changes at a glance



6. TF external memory card expansion, can store up to more than 10,000 records



7. Dimensions: 65×140×40mm Weight: 220g



Product parameters

Model No.: BR-SMART

Brand: BLATN

Overall Dimension: 143*69*43mm

Net Weight: 220g

Testing Item: PM1.0 / PM2.5 / PM10 / TVOC / CO2 / Formaldehyde / 6-channel Particle number

Display: LCD Color screen display

Interface Language: English

User manual: English

Power: 2200mAh Lithium battery + USB charging

Data storage: external TF memory card, data can be exported to the computer


Technical Specification

PM1.0/PM2.5/PM10



Measuring Method: Light scattering measurement



Mode: Auto



Measuring Range: 0-999μg/m3



Resolution : 1.0μg/m3



CO2



Measuring Method: NDIR measurement



Mode: Auto



Measuring Range: 400-2000ppm



Resolution : 1ppm



Formaldehyde



Measuring Method: electrochemical sensor measurement method



Mode: Auto



Measuring Range: 0-1.0mg/m3



Resolution : 0.01mg/m3



TVOC



Measuring Method: semiconductor sensor test



Mode: Auto



Measuring Range: 0-9.99 mg/m3



Resolution : 0.01 mg/m3







PM particulate matter and particle number



PM1.0, PM2.5, PM10

Unit: μg/m3 (Micrograms per cubic meter)



Refers to the concentration of particulate matter in the environment, a unit of mass



PM2.5: is the total mass of all particles with a diameter of less than Or equal to 2.5 microns in the ambient air per cubic meter



PM10: is the total mass of all particles with a diameter of less than Or equal to 10 microns in the ambient air per cubic meter



6-channel particle number: >0.3 >0.5 >1.0 >2.5 >5.0 >10

Unit: Num/L (number/liter, Number per liter of air) It is a unit of quantity



>5.0 : The number of particles greater than 5.0 refers to the total number of particles greater than 5 microns in diameter per liter of air



>10: The number of particles greater than 10 refers to the total number of particles greater than 10 microns in diameter per liter of air



Instructions for Use:

How to enter the 6-channel particle number interface

Click the data curve button to switch between particle number and curve mode



What data does the memory card record?

update: TF memory card can record all the testing items: PM1.0, PM2.5, PM10, CO2, TVOC, HCHO, 6-channel particle number: >0.3 >0.5 >1.0 >2.5 >5.0 >10



Ventilation of the machine for the first time and unused for a long time

When the machine is used for the first time and not used for more than 7 days, it needs to be placed in a well-ventilated environment for 8 hours. <br> In other cases, the detector can be used after being turned on. To ensure accurate readings, please take more than 20 minutes to start reading.



Questions about power-on readings

After the air monitor is turned on, the sensor needs to warm up and start reading.



The detector can adjust the warm-up time automatically according to the using time interval.



The general warm-up time is 1-3 minutes, and the long time unused warm-up time is 3- 5 minutes.



About battery charging

The machine screen does not prompt for charging information when it is

turned off for charging, it can be fully charged after 4-5 hours in the OFF state.



You can use the mobile phone charging head to connect the charging cable in the product package to charge.



If you need to measure for a long time, please connect a charger or a mobile power supply.
