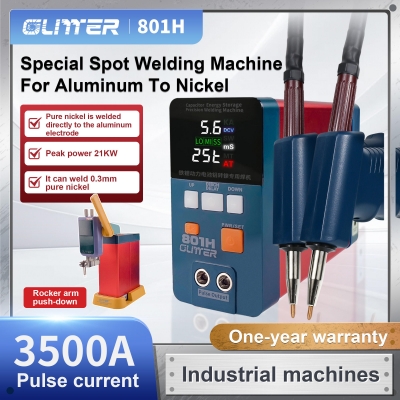

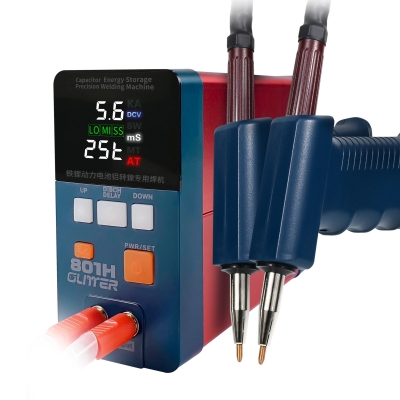

801H 3500A high power pulse storage battery spot welder 19.8kw lithium iron power battery aluminum nickel welding machine

  • Main Feature :
  • Serial No. : Zoe809
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

801H 3500A high power pulse storage battery spot welder 19.8kw lithium iron power battery aluminum nickel welding machine



Advanced Pulse Welding System - Key Features

  1. HF Inverter Supercapacitor Technology

    • Eliminates AC power interference

    • Prevents circuit breaker tripping

    • Patent-pending energy storage control

  2. High-Efficiency Pulse Output

    • Low-loss metal bus technology

    • 19.8kW max pulse energy output

    • 3500A peak welding current

  3. Intelligent Control System

    • Microprocessor-controlled pulse formation

    • Millisecond-level reliable solder nugget creation

    • Multi-function parameter display

  4. Dual Material Welding Modes

    • "Al→Ni" mode for lithium battery electrode welding

    • "Ni→Ni" mode for standard applications

    • Supports 0.2mm Al-Ni / 0.4mm Ni-Ni welding

  5. Precision Welding Performance

    • Concentrated, thin weld points

    • Deep penetration without blackening

    • Zero heat damage to battery cells

  6. Dual Operation Modes

    • Two-tool configuration for versatility

    • Dual trigger modes for different applications

    • Real-time pulse current monitoring

  7. Safety & Reliability Features

    • Auto-discharge safety mechanism

    • Industrial-grade thermal management

    • ESD protection circuitry

  8. Professional Tooling Options

    • Interchangeable welding pens

    • Ultra-thin to thick material capability

    • Ergonomic tool designs

Technical Highlights:

  • Supercapacitor storage: 50,000+ cycles

  • Response time: <1ms

  • Energy efficiency: >92%

  • Operating temp: -20°C to 60°C

  • IP54 protection rating


Parameter

Specification

Model

801H

Power Supply

100-240V AC (Universal Voltage)

Peak Power

21KW

Peak Welding Energy

420J

Output Voltage

5-6V

Peak Current

3500A

Pre-pressure Delay Time

100/200/300/400/500ms (selectable)

Pulse Duration

0-20ms (100 levels adjustable)
