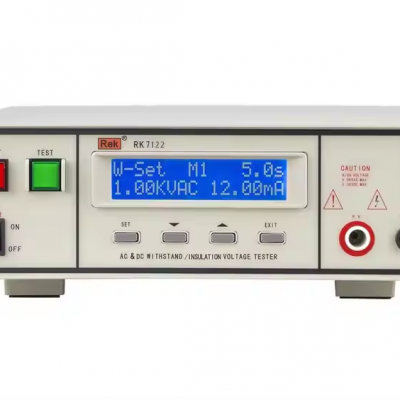

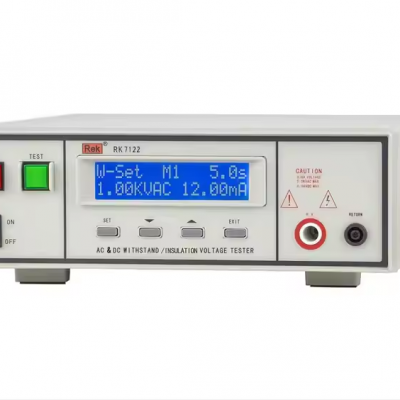

Testermeter-7122 Programmable Insulation Test Withstanding Voltage Tester 6KV Resistance Test with High Test Accuracy

  • Main Feature :
  • Serial No. : Lisa0817
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Testermeter-7122 Programmable Insulation Test Withstanding Voltage Tester 6KV Resistance Test with High Test Accuracy

Product Description

This series of programmable voltage tester are using high-speed MCU and large scale digital circuit design of high performance safety test instrument,The size of the output voltage,the the rise and fall of output voltage,the frequency of output voltage are controlled by the MCU completely.It can display the breakdown current value and the voltage value in real time.And has the function of software calibration.Can test the breakdown voltage,leakage current and other electrical safety performance indicators of various objects intuitive,accurate and fast.And it can be used as a high voltage source to test the performance of components and the whole machine.

Performance characteristics


The voltage gradient ascent by the set time,and the breakdown point can be analyzed.

Starting when zero crossing,cutting when zero crossing,to prevent damage to the test piece.

The upper and lower limit setting of current.

Has 5 groups of memory capacity,the test results saved automatically.

Has arc detection function.(as 1-9 level)


ModelProgrammable insulation withstand voltage testerProgrammable withstand voltage tester
7112712271107120
Withstand voltage testOutput Voltage(kV)AC:0-5AC:0-5AC:0-5AC:0-5
DC:0-6DC:0-6
Test Accuracy±(2% setting value+5V)
Output Current(mA)0.10-12.00AC:0.10-12.000.10-12.00AC:0.10-12.00
DC:0.10-5.00DC:0.10-5.00
Test Accuracy±(2% setting value+2Counts)
Insulation testOutput Voltage(kV)DC:0.10-1.00————
Display Accuracy±(2% setting value+1Counts)————
Test resistance range1-1000MΩ————
Test Accuracy±(5% reading+2Counts)————
DC:voltage≥500V
±(7% reading+2Counts)
DC:voltage<500V
Test time0.2~999.9s
Output frequency50Hz/60Hz(optional)
Input characteristics  Single phase47~63Hz,115V/230V   AC±15%(optional)
Communication interfaceInput:Test/Reset  Output:Pass/Fail/Test/Process
Test instrument failure alarmBuzzer,liquid crystal display "FAIL",indicating lamp
Memory groupGroup memory,there are 4 test modes in each group(W,IW-I,I-W linking)
Keyboard security lockOptional:"locked" or "unlocked"
Exterior dimension390×280×90mm
Weight9kg
AccessoryTest line,ground wire,power line
