Testermeter-6 in 1 Mini Compact LORA LORAWAN GPRS 4G WIFI Integrated Weather Station Temperature Humidity Pressure Ultrasonic Wind Sensor

2025-07-03 15:41:57

Main Feature :
Serial No. : Lisa0836

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter-6 in 1 Mini Compact LORA LORAWAN GPRS 4G WIFI Integrated Weather Station Temperature Humidity Pressure Ultrasonic Wind Sensor

Product Description

Measurement parameters
Parameters Name	6 in 1: Air temperature, Humidity, Wind speed, Wind direction, Pressure, Rainfall
Parameters	Measure range	Resolution	Accurancy
Air temperature	-40-60℃	0.01℃	±0.3℃（25℃）
Air relative humidity	0-100%RH	0.01%RH	±3%RH(<80%RH)
Atmospheric pressure	500-1100hpa	0.1hpa	±0.5hPa（25℃，950-1100hPa）
Wind speed	0-40m/s	0.01m/s	±（0.5+0.05V）M/S
Wind direction	0-360°	0.1°	±5°
Rainfall	0-200mm/h	0.2mm	±15%
* Other customizable parameters	Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3
Monitoring principle	Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor
	Wind speed and direction: Ultrasonic sensor

Technical parameter
Stability	Less than 1% during the life of the sensor
Response time	Less than 10 seconds
Warm-up time	30S
Supply voltage	9-24VDC
Working current	DC12V≤180ma
Power consumption	DC12V≤2.16W
Life time	In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed), life is not less than 3 years
Output	RS485, MODBUS communication protocol
Housing material	ASA engineering plastics which can be used for 10 years outside
Working environment	Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	3 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Electronic compass	Optional
GPS	Optional

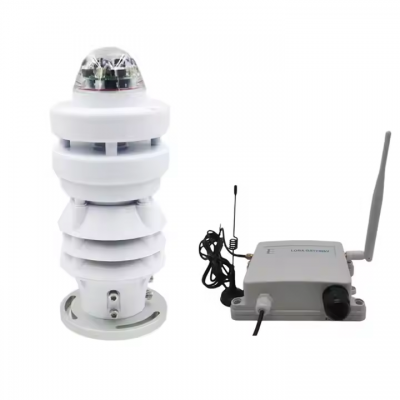

Wireless transmission
Wireless transmission	LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI

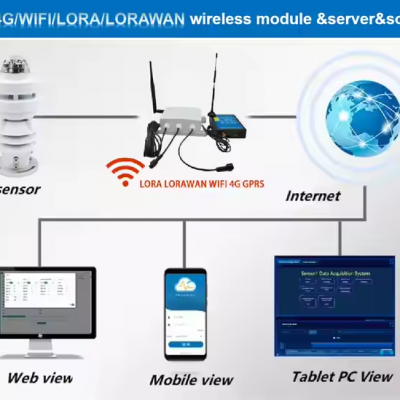

Cloud Server and Software introduce
Cloud server	Our cloud server is bind up with the wireless module
Software function	1. See real time data in the PC end
	2. Download the history data in excel type
	3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.

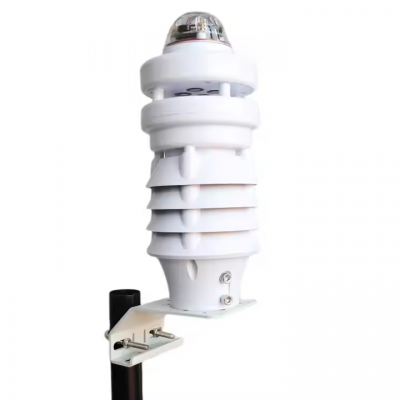

Mounting Accessories
Stand pole	1.5 meters, 1.8 meters ,3 meters higth, the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to burried in the ground
Lightning rod	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional
Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket
