19290 Surface Resistance Tester

  • Main Feature :
  • Serial No. : Zoe749
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

19290 Surface Resistance Tester

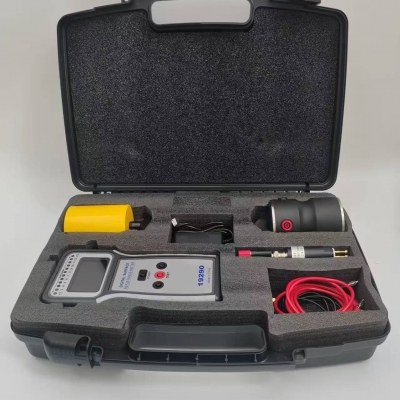

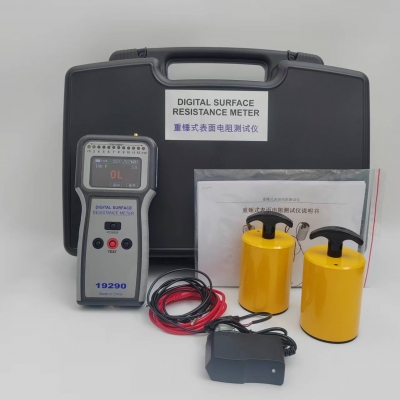

Description and Accessory List

The 19290 is a professional meter for measuring electrostatic resistance, with the following features:

Electrostatic Material Resistance Testing: Tests point-to-point resistance, surface resistance, volume resistance, and grounding resistance of materials. This function is used to assess the electrostatic dissipation performance of anti-static materials.

Testing Environmental Temperature and Humidity: The resistance characteristics of materials are related to ambient temperature and humidity. The meter records the temperature and humidity for each test.

Data is saved in the meter's memory and cannot be exported.

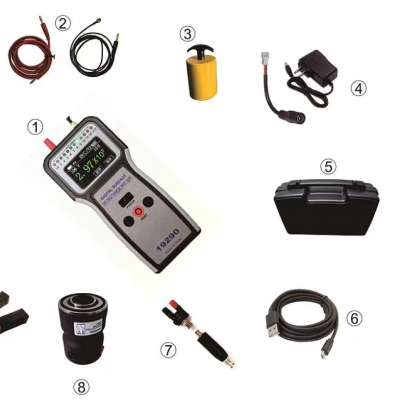

1. 19290 meter (with built-in rechargeable lithium battery)

2. Test leads (1.5 meters long, one red and one black)

3. Single-sided weight (standard electrode)

4. Lithium battery charger

5. Carrying case

6. USB data cable

7. Pen-style two-point electrode (optional)

8. Double-sided weight (concentric circle electrode, optional)

9. Clamp electrode (optional)

10. Glove Constant Area And Force Electrode (for testing gloves/finger cots, optional)

11. Handheld electrode (for measuring human, shoe, and floor resistance)

12. Wrist strap tooling



Specification

Test time: 15 seconds/adaptive object/no timing/30 seconds/1 minute.

Operating temperature: -20°C to 85°C, accuracy ±2°C.

Operating humidity: 0-100% RH, accuracy ±5% RH.

Data storage: 300 sets of records, non-exportable.

Screen specifications: 2.7-inch LCD color screen, ultra-wide viewing angle, supports 8 levels

of brightness adjustment.

Battery: rechargeable lithium battery, 2200mAh, works for over 12 hours.

meter specifications: 100mm (W) * 210mm (H) * 32mm (D), weight 0.5 kg.

Weight: 2.27 kg.
