TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

TesterMeter-ETCR015 φ17mm/100A AC High Accuracy Clamp Leakage Current Sensor,clamp current transformer

2023-07-05 22:41:53

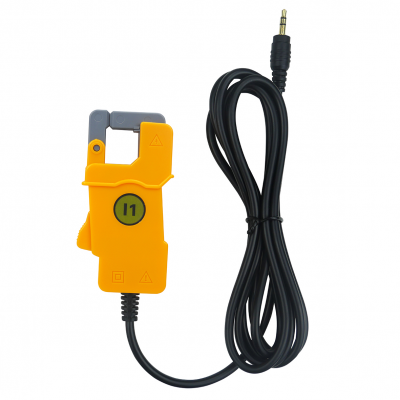

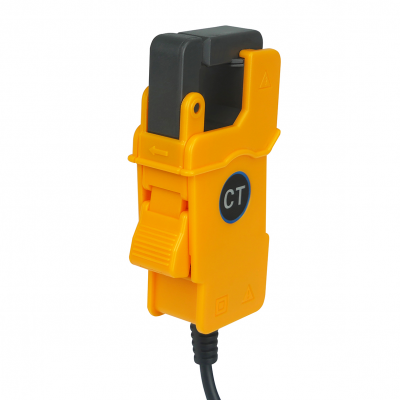

ETCR015 clamp current sensor/transformer

Main Feature : 1,Measurement of AC leakage current, current, higher harmonic current, phase, power energy, power factor.2,Output interface: φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug (optional). Wire length: 2M,3,Insulating strength: AC3700V/ms ( between the core and coil),4,Dimension: 47mm×92mm×26mm,5,Clamp Size：17mm×18mm,6,Weight：175g,7,Working temperature: -15°C～50°C
Serial No. :

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

MAIN FEATURES

Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing.
Non-contact measurement, easy to operate, fast, safe and reliable.
Adopts Permalloy core , with high performance and high accuracy, high anti-interference ability, suitable for complex interference environment.
The range, transformation ratio, output interface of the sensor can be customized according to customer requirements.
Output interface: φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug (optional). Wire length: 2M
Insulating strength: AC3700V/ms ( between the core and coil)
Dimension: 47mm×92mm×26mm
Clamp Size：17mm×18mm
Weight：175g
Safety class: CATⅢ600V
Working temperature: -15°C～50°C

SPECIFICATION

Model	Input Current	Output Signal	Frequency	Secondardy Load	Accuracy Class	Series
TesterMeter-ETCR015	0.00mA～5A	2mA	10Hz～100kHz	0～1A≤500Ω； 0～10A≤50Ω； 0～100A≤5Ω	0.2	L0101
	0.00mA～5A	5mA				L0102
	0.00mA～10A	4mA				L0103
	0.00mA～10A	10mA				L0104
	0.00mA～30A	12mA				L0105
	0.00mA～30A	30mA				L0106
	0.00mA～100A	40mA				L0107
	0.00mA～100A	100mA				L0108

Lable: φ17mm/100A AC clamp-current-sensor clamp-current-transformer clamp-CT
