U-508 Digital Sonic Belt Tension Meter 10Hz~5000Hz with Flexible Sensor Tensiometer

Main Feature :
Serial No. : Zoe621

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Testermeter- U-508 Digital Sonic Belt Tension Meter 10Hz~5000Hz with Flexible Sensor Tensiometer

The sonic belt tension meter (U-508) is the handy equipment which enables to measure the tension accurately by analyzing sonic wave without touching. A sensor catches the produced eruption of sound wave by pick the belt span. After that, the high processing computer analyzes it and shows the result on the screen digitally

Main Body

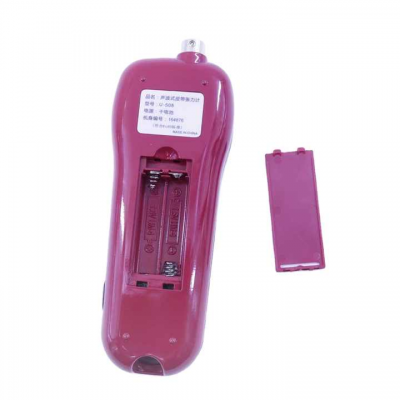

• Power Supply: Two triple A batteries. Alkaline battery is recommended.
•Mass: 120g
•Temperature and humidity range for use and storage: -10~-50℃, 80%(free from condensation)

U-508
1)Flexible type sensor
•Sensor outer diameter: 12.5mm
•Total length: 170mm
•Measurable frequency band: 10Hz~5000Hz
2)Soft case for carrying
•Capable of containing the body of tension meter, flexible type sensor etc.
•Total length: 170mm
•Measurable frequency band: 10Hz~5000Hz
3)Two triple A batteries
4)Operation manual of U-508
5)Operating procedure sheet for carrying

6)Inspection acceptance certificate
7)Warranty
8)Two USB connecting caps (one is for a spare)
9)Operating manual of application software for U-508
∗Please use the MINI-B 5 as USB connector

Option
1)Side type sensor
•Sensor outer diameter: Thickness10mm, Width20mm
•Total length: 170mm
•Measurable frequency band: 10Hz~5000Hz
2)Long type sensor
•Sensor outer diameter: 12.5mm
•Total length: 350mm
•Measurable frequency band: 10Hz~5000Hz
3)Electromagnetic type sensor
•Total length: 1m
•Measurable frequency band: 10Hz~5000Hz
4)Cord type sensor
•Sensor outer diameter: 12.5mm
•Total length: 1m
•Measurable frequency band: 10Hz~5000Hz
